$129.53$117.75 Ex. GST

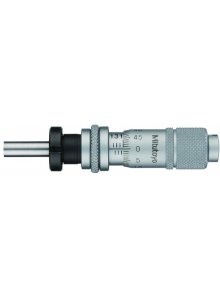

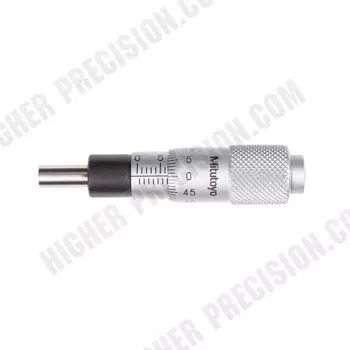

148-824 Mitutoyo Rev. Reading Micrometer Head Common Type in Small Size : 0-13mm
The Mitutoyo 148-824 common type in small size micrometer head has the following specifications:
Range: 0-13mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 9.5mm
Stem: With Clamp Nut
Spindle Face: Flat
Spindle Lock
Reverse Reading
Technical Data:
Spindle Pitch: 0.5mm
Spindle Face: Flat or spherical
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 6mm
| Weight | 0.0450 kg |
|---|---|
| barcode | |
| Additional Information | Inch-Metric: Metric |
