$130.31$118.46 Ex. GST

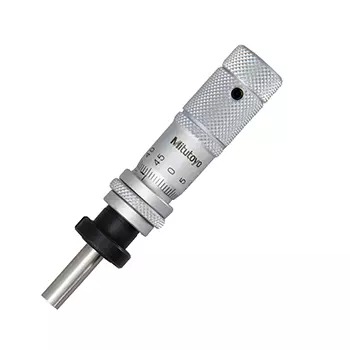

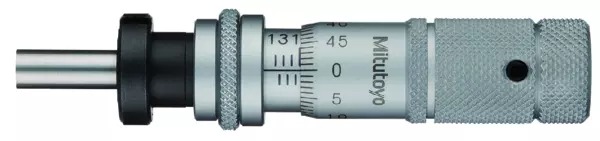

148-864 Mitutoyo Micrometer Head Common Type in Small Size with Zero Adjustment: 13mm-0
The Mitutoyo 148-864 Reverse Reading Micrometer Head in Small Size with Zero Adjustment has the following specifications:
Range: 13mm-0
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 9.5mm
Stem: With Clamp Nut
Spindle Face: Flat
Remarks: Reverse Reading, With Spindle Lock
Features:
The thimble can be set to zero at any position by loosening the setscrew.
Technical Specifications:
Spindle Pitch: 0.5mm
Spindle Face: Flat or spherical of SKS3 (more than HRC60)
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 6mm
| Weight | 0.0400 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
