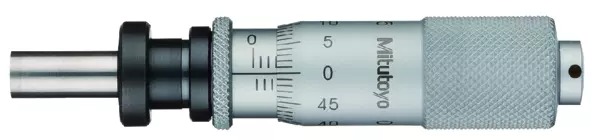

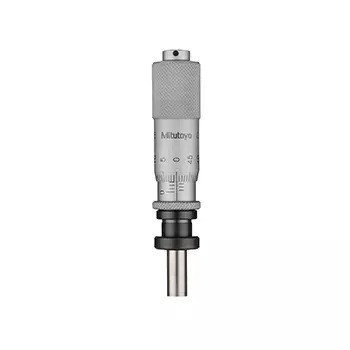

149-184 Mitutoyo Micrometer Head Common Type in Small Size with Carbide-Tipped Spindle: 0-15mm
The Mitutoyo 149-184 Micrometer Head Common Type in Small Size with Carbide-Tipped Spindle has the following specifications:
Range: 0-15mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 9.5mm
Stem: With Clamp Nut
Spindle Face: Flat (Carbide Tip)
Remarks: With Spindle Lock
Features:
Type: Common Type in Small Size w/ Carbide-Tipped Spindle
Carbide tipped measuring face.
Specifications:
Available Graduations: .01mm or .001″
Spindle Pitch: 0.5mm
Spindle Face:
Flat (carbide tip): More than HRA90
Spherical (SR4)
Long Spindle Type: More than HRC60
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 11.5mm
| Weight | 0.0600 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
