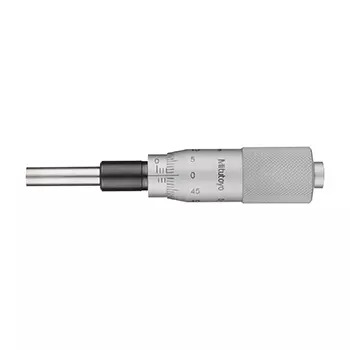

Mitutoyo Micrometer Head 150-196

Description

150-196 Mitutoyo Micrometer Head Common Type in Middle Size: 0-25mm

The Mitutoyo 150-196 Common Type in Middle Size Micrometer Head has the following specifications:

Range: 0-25mm
Graduations: .001mm (With Vernier)
Accuracy: +/- .002mm
Stem Diameter: 10mm
Stem: Plain
Spindle Face: Flat (Carbide Tip)
Remarks: With Vernier (.001mm), With Spindle Lock
Features:

Style: Common Type in Middle Size
Ratchet stop for constant force.
Long spindle type is available for a variety of applications.
Carbide tipped measuring face.
Specifications:

Available Graduations: .01mm, .001mm, .001″, .0001″
Spindle Pitch: 0.5mm
Spindle Face:
Flat (carbide tip): More than HRA90
Spherical (SR4)
Long Spindle Type: More than HRC60
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 11.5mm
