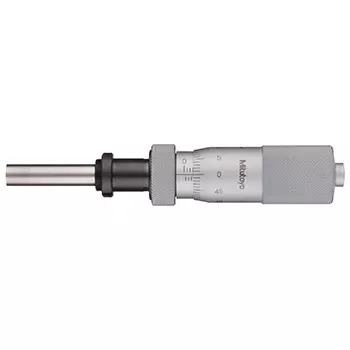

151-226 Mitutoyo Micrometer Head Common Type in Middle Size w/ 8mm Spindle: 0-25mm
The Mitutoyo 151-226 Micrometer Head – Common Type in Middle Size has the following specifications:
Range: 0-25mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 12mm
Spindle Diameter: 8mm
Stem: With Clamp Nut
Spindle Face: Flat (carbide tip)
Notes: w/o Ratchet Stop, With Spindle Lock
Features:
8mm diameter spindle for heavy duty use.
Ratchet stop for constant force.
Carbide tipped measuring face.
Specifications:
Available Graduations: .01mm, .001mm, .001″, .0001″
Spindle Pitch: 0.5mm
Spindle Face: Flat with carbide tip (more than HRA90) lapped surface
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 25.5mm
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Type: Micrometer Head |
