Mitutoyo Micrometer Head 152-283

Description

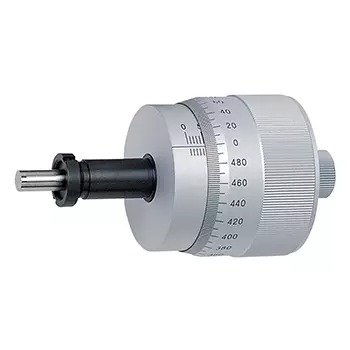

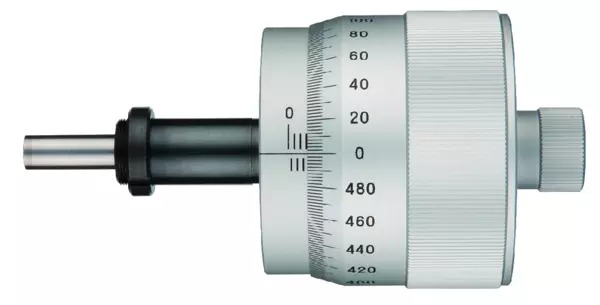

152-283 Mitutoyo Micrometer Head Large Thimble Type for Fine Feeding: 0-10mm

The Mitutoyo 152-283 Micrometer Head with Large Thimble Type for Fine Feeding has the following specifications:

Range: 0-10mm
Graduations: .002mm
Accuracy: +/- .002mm
Stem Diameter: 12mm
Stem: With Clamp Nut
Spindle Face: Flat (carbide tip)
Features:

The large diameter thimble for fine adjustment and positioning.
Carbide tipped measuring face.
Technical Data:

Graduations: .002mm or .0001″
Spindle Pitch: 1mm
Spindle Face: Flat carbide tip (more than HRA90) lapped surface
Fixture Thickness for Clamp Nut: 22.5mm
Scale Surface: White anodized aluminum
