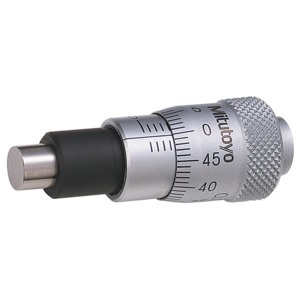

Mitutoyo Micrometer Head B 148-301

Description

Micrometer Heads-Large Thimble Diameter
The Mitutoyo large thimble diameter micrometer heads allow easier measurement reading, even in confined spaces. The Mitutoyo large thimble diameter micrometer heads provide highly accurate measurements and adjustments that are easier to read. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Available in: Metric and Inch models
Mounting Stem Diameter: 9.5 mm / .375”
Spindle Diameter: 6.5 mm / .256”
Mic Head Total Lengths (at stroke end): 48.5 mm / 1.90” and 68 mm / 2.67”
Thimble Diameters: Three types available for each Metric and Inch models
Spindle Faces: Flat, lapped surfaces constructed of ultra-hard SKS3 steel
Thimble: Hard-chrome plated with laser-etched scales for easy-to-read measurements
Spindle Screw Threads: Precision machined for incredibly precise movements
