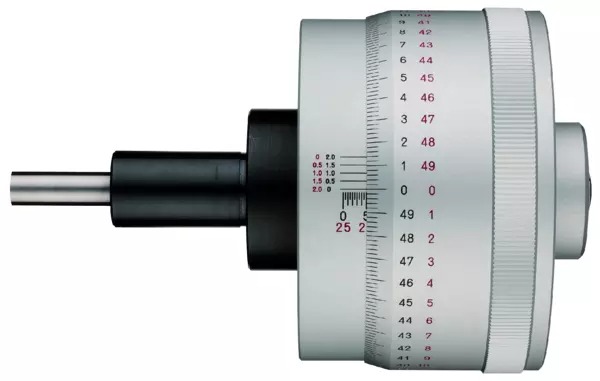

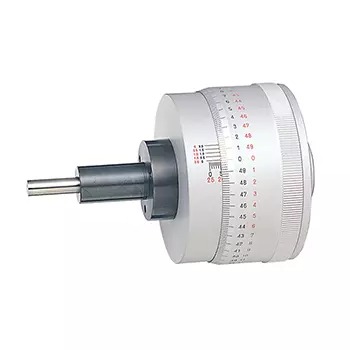

Mitutoyo Micrometer Head B 153-301

Description

153-301 Mitutoyo Micrometer Head with Non-Rotating Spindle and High Accuracy: 0-25mm

The Mitutoyo 153-301 Micrometer Head with Non-Rotating Spindle and High Accuracy has the following specifications:

Range: 0-25mm
Graduations: .0005mm
Accuracy: +/- .001mm / +/- .0005mm
Stem Diameter: 18mm
Stem: Plain
Spindle Face: Flat (Carbide Tip)
Remarks: Bidirectional Graduations
Notes: Non-Rotating Spindle and High Accuracy
Features:

Fine graduation and high resolution model.
Large thimble micrometer head with non-rotating spindle.
Bidirectional graduation for easy reading in both directions.
Carbide tipped measuring face.
Technical Data:

Available Graduations: .0005mm or .00001″”
Spindle Pitch: 0.5mm
Spindle Face: Flat (carbide tip): More than HRA90, Lapped Surface
Scale Surface: White anodized aluminum
