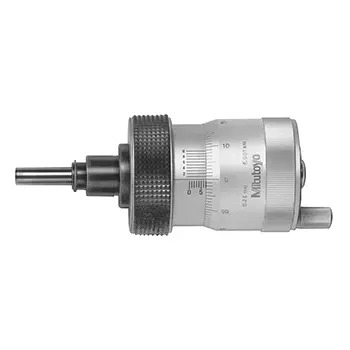

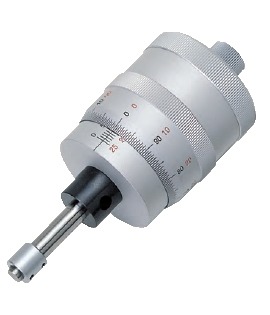

Mitutoyo Micrometer Head For Projector 152-401

Description

152-401 Mitutoyo Micrometer Head for XY Stage: 0-25mm (Y-Axis)

The Mitutoyo 152-401 Micrometer Head for XY Stage has the following specifications:

Range: 0-25mm
Graduations: .001mm (with Vernier)
Accuracy: +/- .002mm
Stem Diameter: 18mm
Stem: Plain
Spindle Face: Spherical with Carbide Tip
Notes: For Y-Axis, With Vernier
Features:

Adjustable spindle can be moved with the thimble held at any position, allowing easy zero-setting.
Technical Data:

Spindle Pitch: 1mm
Spindle face: Flat (hardened) or spherical with carbide tip (more than HRA90), lapped surface
Scale surface: White anodized aluminum.
