Mitutoyo Micrometer Set B 103-907-40

Description

The Mitutoyo 103-907-40 outside micrometer set has the following specifications:

Range: 0-6″
Graduations: .0001″
Includes 6 Micrometers & 5 Measuring Standards

Features:
Frame has a hammer tone baked enamel finish for durability
Scale is laser etched on thimble and sleeve
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
Comes with standard bar except for 0-1″
Supplied in a fitted plastic case

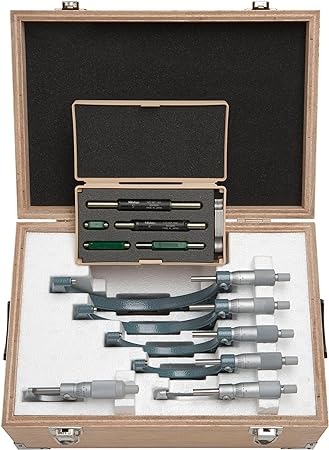

The Mitutoyo 103-907-40 outside micrometer set is made up of the following:

103-135 Outside Micrometer with Friction Thimble: 0-1″
103-136 Outside Micrometer with Friction Thimble: 1-2″
103-217 Outside Micrometer with Ratchet Stop: 2-3″
103-218 Outside Micrometer with Ratchet Stop: 3-4″
103-219 Outside Micrometer with Ratchet Stop: 4-5″
103-220 Outside Micrometer with Ratchet Stop: 5-6″
5 Micrometer Standards
The Mitutoyo Series 103 micrometers are some of the best quality micrometers available on the market today. Available with both .001″ and .0001″ graduations, the 103 series of micrometers is available as individual micrometers or in sets. All sizes above 0-1″ include a measuring standard. The Mitutoyo outside micrometers series 103 features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. Available in metric and inches. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism on all the micrometers included in the 103-907-40 set provides uniform pressure on a workpiece for precise, repeatable measurements. he 103 series micrometers are Mitutoyo’s most popular mechanical micrometer as the are accurate, durable and have great repeatability.Many other brands have tried to create knock-off versions of the 103 series micrometers and none of them are close to the same type of quality that Mitutoyo is able to offer.
