Mitutoyo MICROMETER STANDARD SET 167-903

Product Code: 167-903

$447.22$406.56 Ex. GST

Product Code: 167-903 SKU 167-903 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

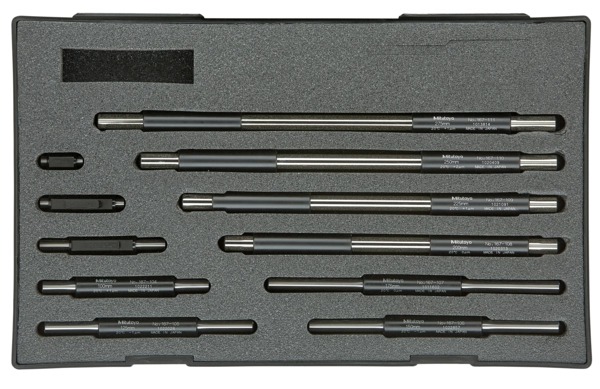

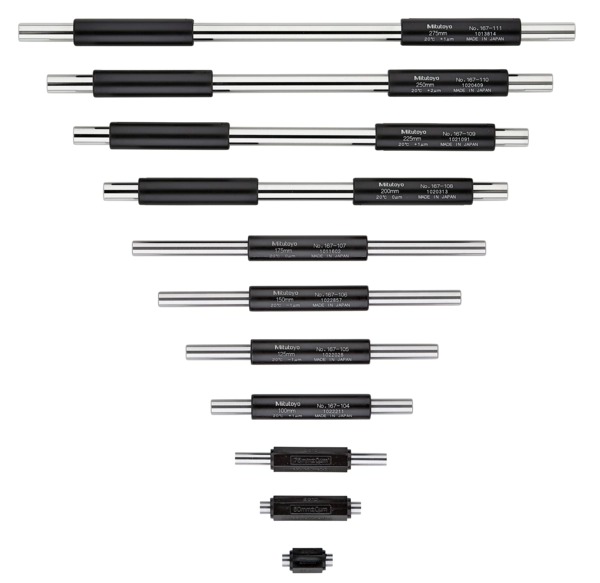

167-903 Mitutoyo Micrometer Standard Set: 25-275mm

The Mitutoyo 167-903 micrometer standard set has the following specifications:

Lengths: 25-275mm (11 Pieces)
Accuracy: See Individual Sizes
Diameter: See Individual Sizes
Features:

Available in Inch and Metric lengths from 1-79″ or 25-1000mm as well as sets
Supplied in fitted carton for standards up to 20″/500mm in length
Supplied in wooden case for standards over 21″/525mm in length
Used for the zero point setting of outside micrometers.
Flat and lapped measuring faces.
Heat insulating handle to prevent expansion due to body temperature.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Delivered: In a plastic box
Inch-Metric: Metric
Length (L): 25-275 mm
Flatness: 0.3 µm
Parallelism: 2 µm
Measuring face: Micro-lap finish
Content of Set: 167-101 up to 167-111

Brand

Mitutoyo
