$679.54$617.76 Ex. GST

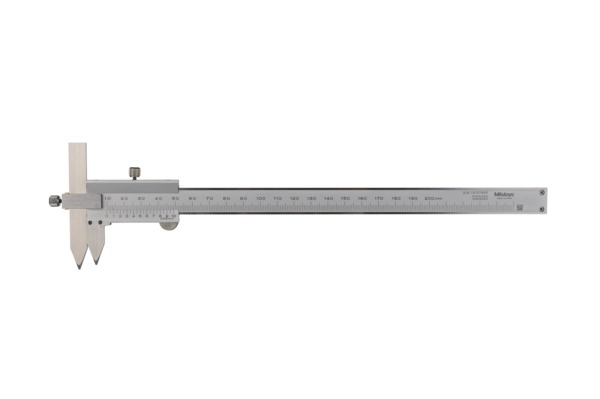

The Mitutoyo 536-106 Vernier Offset Centerline Caliper has the following specifications:
Range: 10-200mm
Graduation: 0.05mm
Accuracy: +/- 0.05mm
Mass: 160 (g)
Features:
Specially designed for center to center distance measurements on the same and offset planes.
Can also measure from edge to center.
Hole diameter should be in the range of 1.5mm-10mm (.06″-.4″).
With SPC data output. (series 573)
Supplied in fitted plastic case.
Technical Data
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Digital models Analog models
Function of Digital Model
Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
| Weight | 0.1600 kg |
|---|---|
| barcode | |
| Additional Information | Delivered: In a case |
