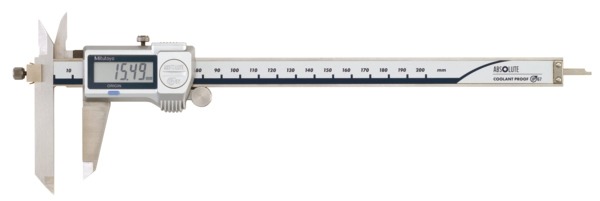

The Mitutoyo 573-602-20 ABSOLUTE Digimatic Offset Caliper has the following specifications:
Range: 0-200mm
Graduation: 0.01mm
Accuracy: +/- 0.02mm
Protection: IP67
Mass: 198
Features:

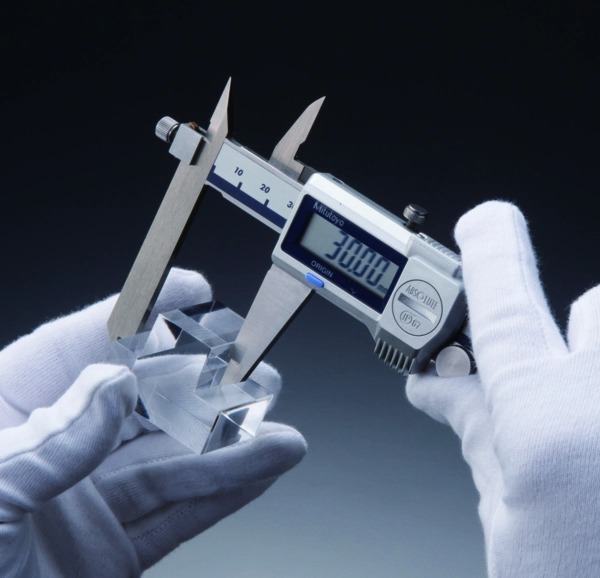

Main scale jaw can slide up and down to facilitate measurement of stepped sections. (Hard-to-get-at dimensions such as A, B, C can be accurately measured.)
With depth bar.
With SPC data output. (series 573)
Supplied in fitted plastic case.
Technical Data
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Digital models Analog models
Function of Digital Model:
Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
| Weight | 0.1980 kg |
|---|---|
| barcode | |
| Additional Information | Range: 0 to 200 mm |
