Mitutoyo Outside Micrometer 102-301

Description

The Mitutoyo 102-301 Outside Micrometer has the following specifications:

Range: 0-25mm
Graduation: 0.01mm
Accuracy: +/- .002mm

Features:
Scale is laser etched on thimble and sleeve for fast and easy measurement readings
Heat-insulated frame minimalizes thermal expansion for consistent measurements in different environments
Carbide measuring faces on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
Includes a standard bar except for 0-25mm models

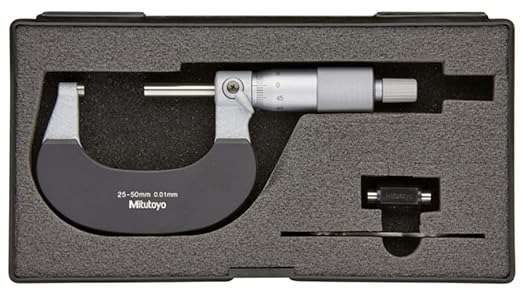

Supplied in a fitted plastic case
The Mitutoyo 102-301 outside ratchet stop micrometer applies constant measuring force on a workpiece and provides greater accuracy even with one-handed operation. Available in metric only. The Mitutoyo 102 series outside micrometer is ideal for measuring metal and non-metal workpieces in tight spaces and narrow slots attributed to the taper of its frame on the anvil side. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.The 102 series micrometers have the heat insulated frame which makes these micrometersdurable to be used out on the shop floor.
