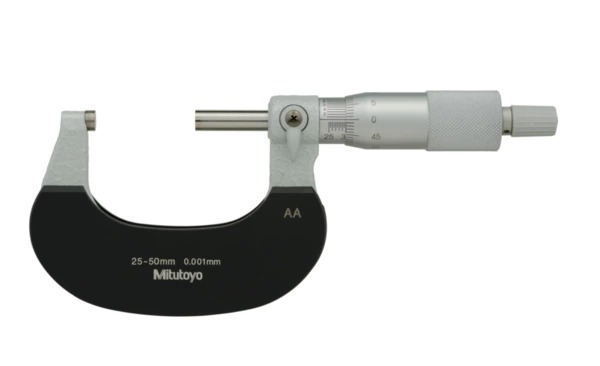

Mitutoyo OUTSIDE MICROMETER 102-312

Description

This outside micrometer is an accurate and reliable device that offers you the following benefits:

Cut-away frame (behind anvil) for measurements in hard-to-reach places
Ratchet stop delivers a constant measuring force
Heat insulating plate

Weight	0.2700 kg
barcode

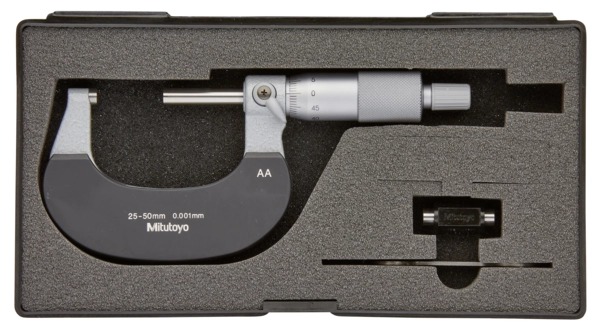

Additional Information	Digital/Analog: Analog Delivered: Including box, key setting standard, certificate of inspection Inch-Metric: Metric Range: 25 – 50 mm Max. Permissible Error J MPE: ±1 µm Flatness: 0.3 µm Parallelism: 1 µm Remarks: Ratchet Stop Measuring face: Carbide-tipped, micro-lap finish Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm Scale: Thimble and sleeve satin chrome finish, ø18 mm Measuring force: 5 – 10 N Mass: 270 g
