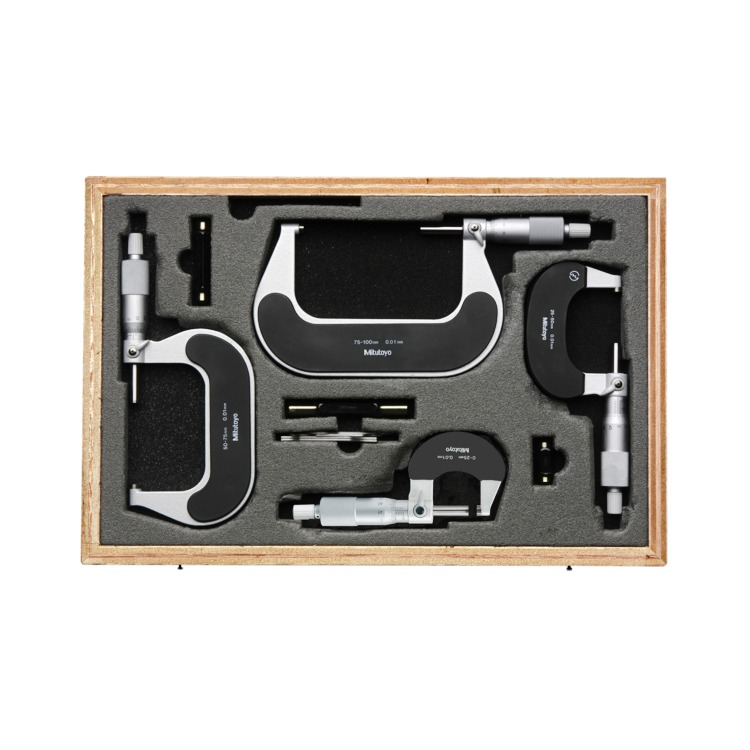

Mitutoyo OUTSIDE MICROMETER SET 0-100MM 102-911-40

Product Code: 102-911-40

$721.33$655.75 Ex. GST

Product Code: 102-911-40 SKU 102-911-40 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo-102-911-40: This Ratchet Thimble Micrometer Has A Mechanism That Ensures Consistent And Reliable Measurements. It Offers You The Following Benefits: It Works Both From The Thimble And The Speeder; Enabling Easy; One-Handed Operation. Ratchet‘S Clearly Audible Operation Provides Reassurance That Measurements Are Being Taken At A Constant; Preset Measuring Force. Heat Insulating Frame.
Product Type: Outside Micrometer
Range: 0-100mm
Increment: 0.01mm

Additional information

Weight 1.9500 kg
barcode
Additional Information

Set range: 0-100mm
4 micrometers
0-25mm
25-50mm
50-75mm
75-100mm
Resolution: 0.01mm
Accuracy: ± 0.002mm/± 0.003mm
Flatness: 0.0006mm
Measuring Force: 5-10N
Measuring face: Carbide-tipped
Measuring Spindle: With spindle lock, 6.35mm diameter
Spindle pitch: 0.5mm
Scale: Thimble and sleeve satin chrome finish, ø18mm
Ratchet stop
Analogue
Metric

Brand

Mitutoyo
