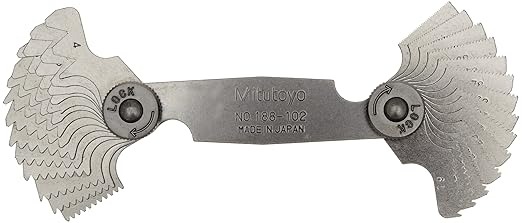

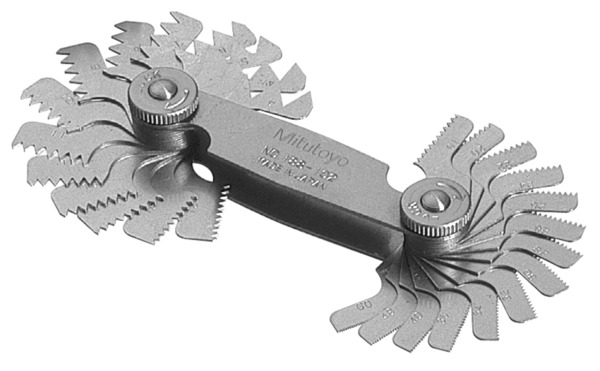

188-102 Mitutoyo 55 Degree Screw Pitch Gage: 4-60 TPI
The Mitutoyo 188-102 Screw Pitch Gage has the following technical specifications:
Range: 4-60 TPI
Composition of Leaves: 28 leaves: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI
Features:
Thread pitch size is stamped on each gage
Metric, Unified, and Whitworth screw pitch gages
| Weight | 0.0641 kg |
|---|---|
| Dimensions | Length 10.01cm x Width 3cm x Depth 2.01cm |
