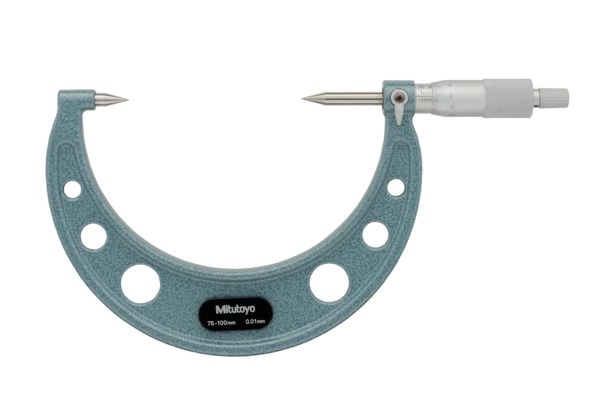

Mitutoyo Point Micrometer 75-100Mm 30De 112-216

Description

The Mitutoyo 112-216 Point Micrometer has the following specifications:

Range: 75-100mm
Graduations: .01mm
Accuracy: +/- .004mm
Point: 30°
Mass(g): 500
Remarks: Carbide Tip Points

Features:
Available in Metric and Inch models
Points are constructed of hardened steel or carbide depending on the model
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Vernier scale graduated to .01mm on the thimble helps with taking precise outer dimension measurements
A spindle lock provides a secure locking of the measurement position for easier recording
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame is constructed of high-grade steel and has a baked enamel finish for durability
Supplied in fitted plastic case
The Mitutoyo 112-216 mechanical point micrometer features pointed tips on the anvil and spindle to measure small grooves, keyways and other, difficult-to-reach areas. Available in inch and metric measurements. The Mitutoyo pointed micrometer anvil and spline measures small groves on parts or workpieces along with keyways. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
