Mitutoyo PRECISION MEASURING PIN SETS 926-222

Product Code: 926-222

$3,697.08$3,360.98 Ex. GST

Product Code: 926-222 SKU 926-222 Categories MEASUREMENT, PRECISION MEASURING PIN SETS

Mitutoyo PRECISION MEASURING PIN SETS 926-222

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

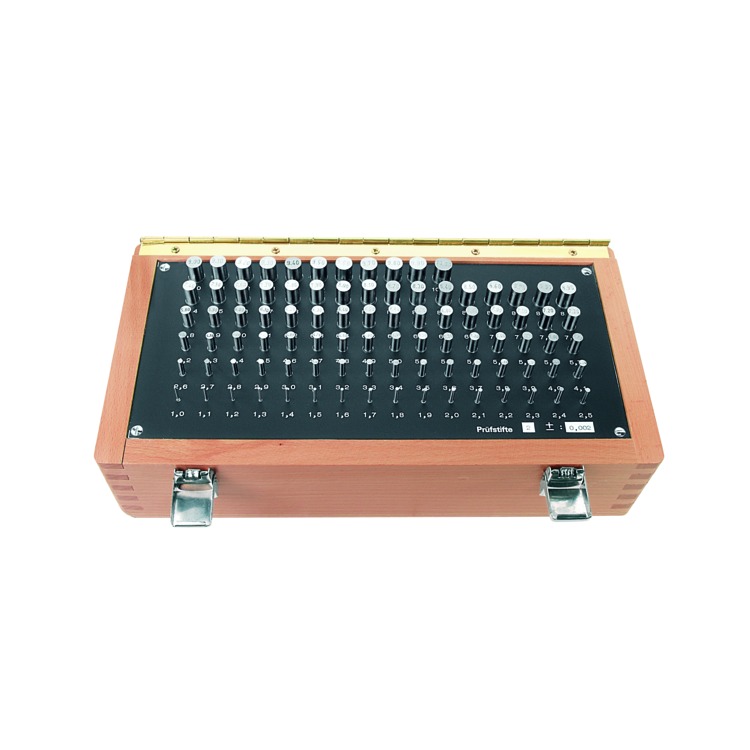

This is a complete incremental set of plug (or pin) gauges, that offers you the following benefits:
It includes 91 or 273 pieces that you can use in the inspection room, or on the shop floor in tool and fixture making.

Additional information

Weight	3.0000 kg
barcode
Additional Information	Delivered: In a wooden box Accuracy: DIN 2269 Error Limit of Diameter: Grade 1: ±1 µm, Grade 2: ±2 µm Grade: 2 Finish: Very fine ground, from Ø 3 mm inscribed Hardness: HRC 60-62 Roughness: RA ≤ 0.1 µm Length: Up to Ø 6 mm = 50 mm, over Ø 6 mm = 70 mm Remarks: 1-10 mm, rising by 0.1 mm Mass: 3 kg
