$85.26$77.51 Ex. GST

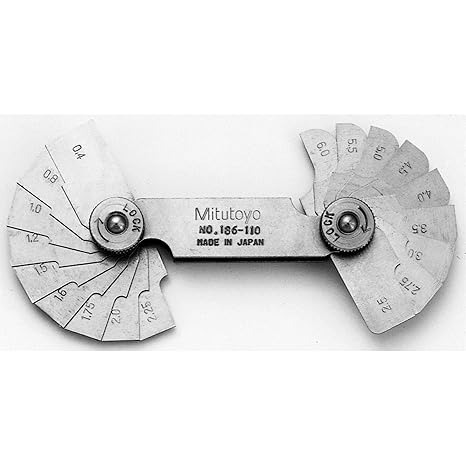

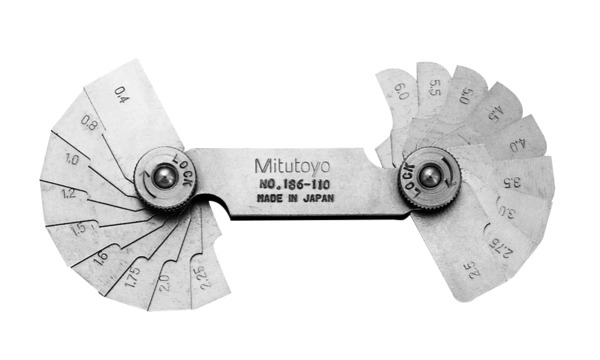

186-110 Mitutoyo Radius Gage – 0.4-6mm
The Mitutoyo 186-110 Radius Gage – has the following specifications:
Range: 0.4 – 6mm
Composition of leaves: 18 leaves: 0.4, 0.8, 1, 1.2, 1.5, 1.6mm, 1.75 – 3mm by 0.25mm, 3.5 – 6mm by 0.5mm
Accuracy: +/- .05mm
Remarks: 90 Degree Arc
Features:
Radius size is stamped on each gage.
Both concave and convex radius gages become a pair.
With a locking clamp.
| Weight | 0.0051 kg |
|---|---|
| Dimensions | Length 8.51cm x Width 10.59cm x Depth 13.31cm |
| barcode | |
| Additional Information |
