Mitutoyo Ring Gage .16In 177-206

Description

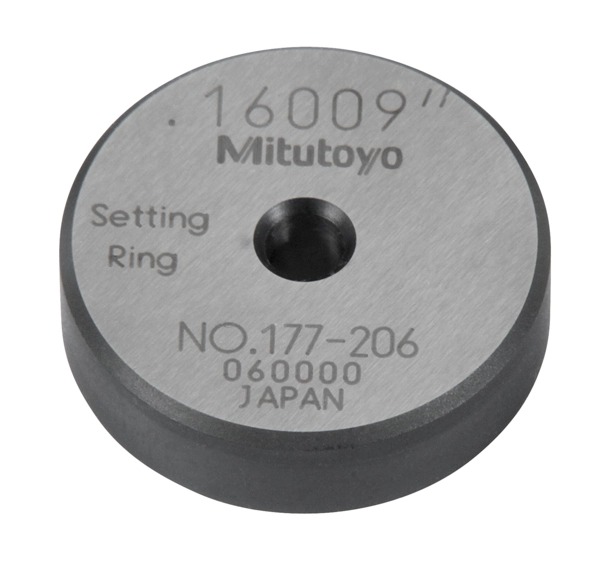

177-206 Mitutoyo Steel Setting Ring – .160

The Mitutoyo 177-206 Steel Setting Ring has the following specifications:

Nominal Size: .160″
Tolerance Between Nominal and Actual Diameter: +/- .0004″
Uncertainty of Marked Diameter Value: +/- .00006″
Roundness/Cylindricity: .00004″
Distance from the Side Face (H): 1.5mm
Side of Warranted Calibration Surface (K): 4mm
Outside Diameter: 25mm
E Dimension for Type B: N/A
Thickness: 7mm
Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-206 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.

Features:

Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
