Mitutoyo Ring Gage 200Mm 177-304

Description

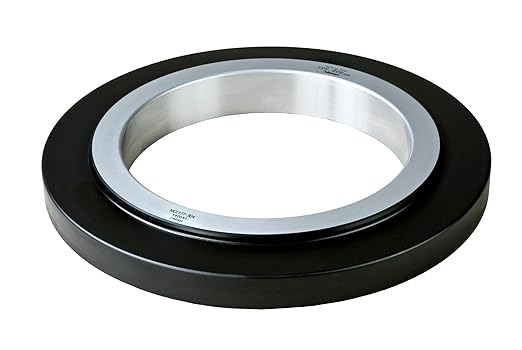

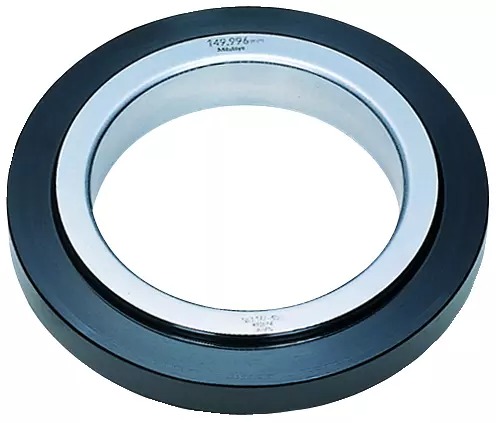

177-304 Mitutoyo Steel Setting Ring – 200mm

The Mitutoyo 177-304 Steel Setting Ring has the following specifications:

Nominal Size: 200mm
Tolerance Between Nominal and Actual Diameter: +/- .020mm
Uncertainty of Marked Diameter Value: +/- .0025mm
Roundness/Cylindricity: .0025mm
Distance from the Side Face (H): 5.3mm
Side of Warranted Calibration Surface (K): 27.7mm
Outside Diameter: 311mm
E Dimension for Type B: 244mm
Thickness: 38.1mm
Type: B
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-304 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.

Features:

Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
