$3,341.92$3,038.11 Ex. GST

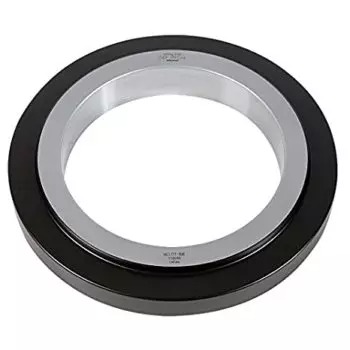

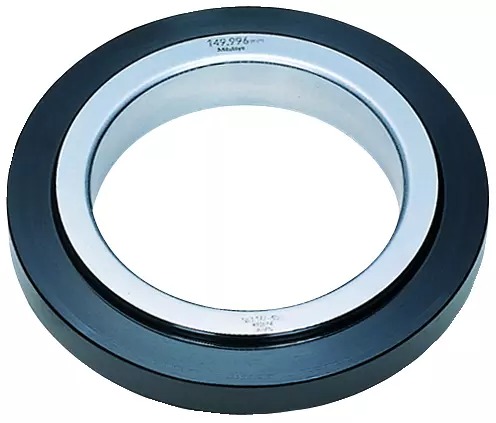

177-308 Mitutoyo Steel Setting Ring – 250mm
The Mitutoyo 177-308 Steel Setting Ring has the following specifications:
Nominal Size: 250mm
Tolerance Between Nominal and Actual Diameter: +/- .020mm
Uncertainty of Marked Diameter Value: +/- .0025mm
Roundness/Cylindricity: .003mm
Distance from the Side Face (H): 5.3mm
Side of Warranted Calibration Surface (K): 27.7mm
Outside Diameter: 362mm
E Dimension for Type B: 290mm
Thickness: 38.1mm
Type: B
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-308 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Inch-Metric: Metric |
