$257.32$233.93 Ex. GST

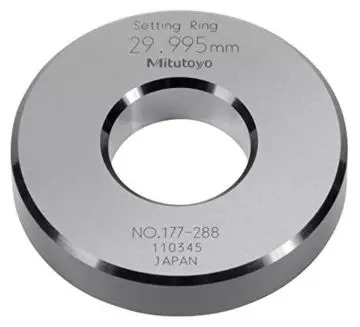

177-288 Mitutoyo Steel Setting Ring – 30mm
The Mitutoyo 177-288 Steel Setting Ring has the following specifications:
Nominal Size: 30mm
Tolerance Between Nominal and Actual Diameter: +/- .010mm
Uncertainty of Marked Diameter Value: +/- .0015mm
Roundness/Cylindricity: .001mm
Distance from the Side Face (H): 3.2mm
Side of Warranted Calibration Surface (K): 8.6mm
Outside Diameter: 71mm
E Dimension for Type B: N/A
Thickness: 15mm
Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-288 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
| Weight | 0.0003 kg |
|---|---|
| Dimensions | Length 8.13cm x Width 7.87cm x Depth 0.76cm |
| barcode | |
| Additional Information | Inch-Metric: Metric |
