$176.64$160.58 Ex. GST

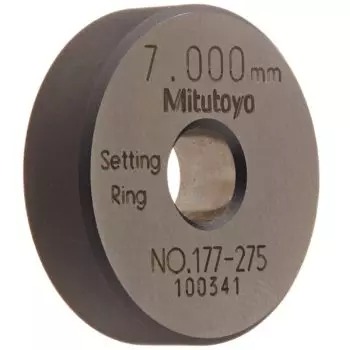

177-275 Mitutoyo Steel Setting Ring – 7mm
The Mitutoyo 177-275 Steel Setting Ring has the following specifications:
Nominal Size: 7mm
Tolerance Between Nominal and Actual Diameter: +/- .010mm
Uncertainty of Marked Diameter Value: +/- .0015mm
Roundness/Cylindricity: .001mm
Distance from the Side Face (H): 1.7mm
Side of Warranted Calibration Surface (K): 3.6mm
Outside Diameter: 25mm
E Dimension for Type B: N/A
Thickness: 7mm
Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-275 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
| Weight | 0.0360 kg |
|---|---|
| Dimensions | Length 5.33cm x Width 5.08cm x Depth 1.78cm |
| barcode | |
| Additional Information | Inch-Metric: Metric |
