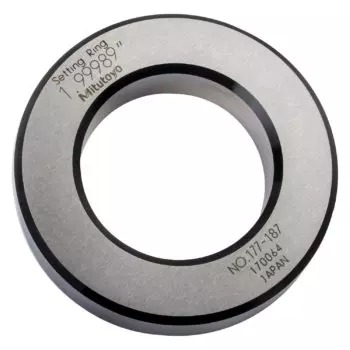

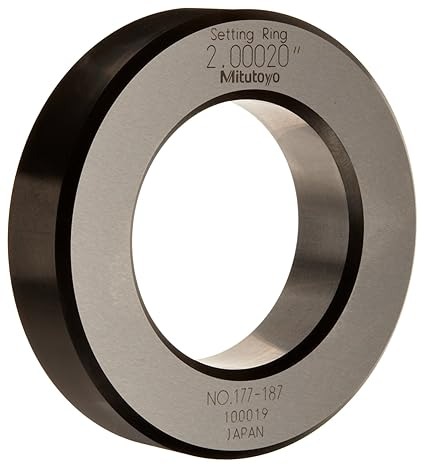

177-187 Mitutoyo Steel Setting Ring – 2″
The Mitutoyo 177-187 Steel Setting Ring has the following specifications:
Nominal Size: 2″
Tolerance Between Nominal and Actual Diameter: +/- .0008″
Uncertainty of Marked Diameter Value: +/- .00006″
Roundness/Cylindricity: .00004″
Distance from the Side Face (H): 3.5mm
Side of Warranted Calibration Surface (K): 13mm
Outside Diameter: 85mm
E Dimension for Type B: N/A
Thickness: 20mm
Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-187 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Inch-Metric: Inch |
