$608.77$553.43 Ex. GST

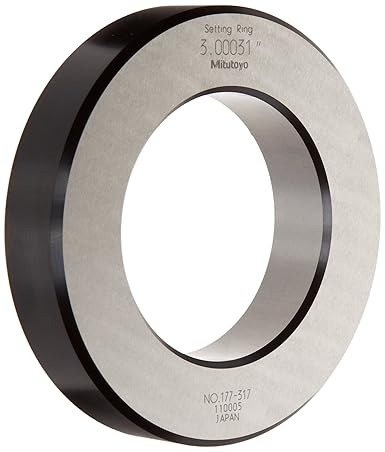

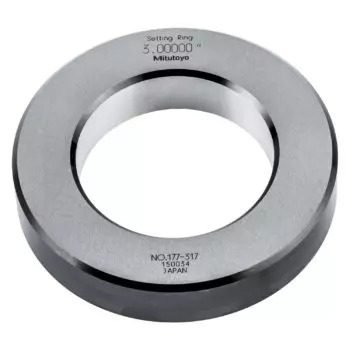

177-317 Mitutoyo Steel Setting Ring – 3″
The Mitutoyo 177-317 Steel Setting Ring has the following specifications:
Nominal Size: 3″
Tolerance Between Nominal and Actual Diameter: +/- .0008″
Uncertainty of Marked Diameter Value: +/- .00006″
Roundness/Cylindricity: .00006″
Distance from the Side Face (H): 4mm
Side of Warranted Calibration Surface (K): 17mm
Outside Diameter: 125mm
E Dimension for Type B: N/A
Thickness: 25mm
Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-317 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Inch-Metric: Inch |
