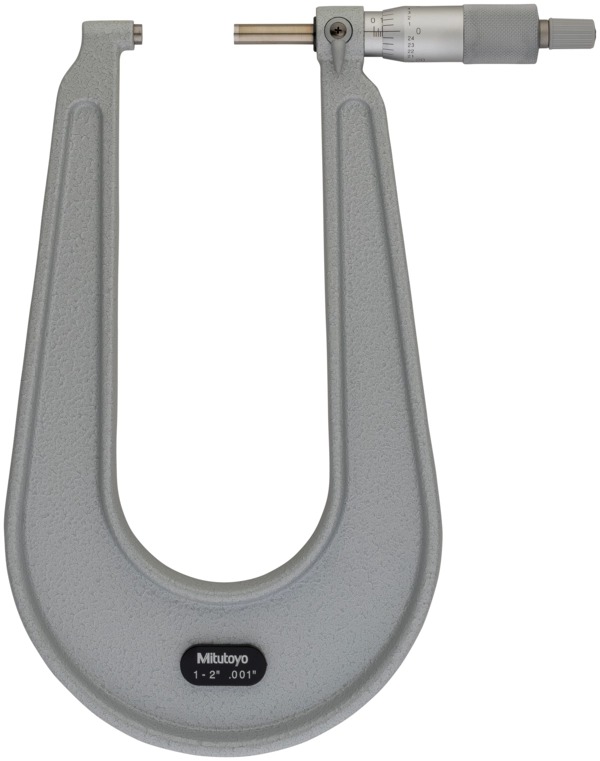

Mitutoyo Sheet Metal Mic B 118-112

Description

The Mitutoyo 118-112 Sheet Metal Micrometer has the following specifications:

Range: 1-2″
Graduations: .001″
Accuracy: +/- .0002″
Throat Depth: 6.5″
Throat Opening: 1.08″
Anvil: Flat
Spindle: Flat

Features:
Models with a spherical anvil and flat spindle, and spherical anvil and spherical spindle are available
Available in Inch or Metric models
Measures thickness of sheet metal, paper, plastic, and rubber parts.
Carbide tips help resist wear on the measuring faces for accurate measurements for an extended period of time
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
With Ratchet Stop for constant force.
Certificate of Inspection is provided
Includes a standard bar except for 0-1″ or 0-25mm

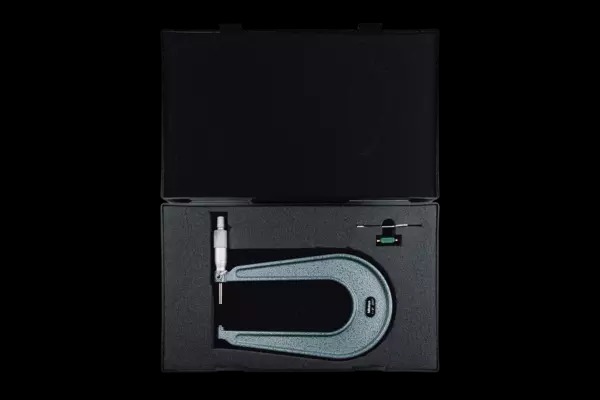

Supplied in fitted plastic case

Technical Data:
Technology: Mechanical
SPC Output: No
Measuring Faces: Carbide tipped
The Mitutoyo 118-112 sheet metal micrometers are designed with a deep measuring throat to enable multiple measurements across a linear plane on materials such as sheet metal, paper, plastic and rubber. The Mitutoyo mechanical sheet metal micrometer is available with a 6-inch or 12-inch throat, allowing the user to take measurements in the middle of sheets of metal, plastic, rubber and paper with high accuracy.
