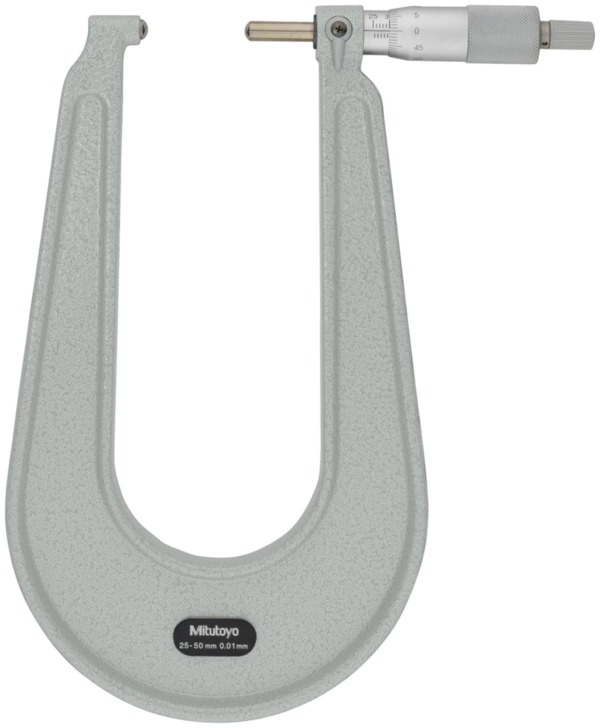

Mitutoyo SHEET METAL MICROMETER 118-126

Product Code: 118-126

$293.52$266.84 Ex. GST

Product Code: 118-126 SKU 118-126 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The Mitutoyo 118-126 Sheet Metal Micrometer helps to provide accurate readings on wider sheets of metal. It creates a constant measuring force to secure the product during operation and ensure that the readings are reliable. The deep frame of the micrometer allows it to measure further towards the center of the object.

Features:
Deep frame for longer sheets of metal
Produces a constant measuring force during operation between 3 to 8 N
Built with spherical anvil and spindle
Measuring face is tipped with carbide for additional durability
Satin chrome finish on the thimble and sleeve
Analog design with a metric scale

Additional information

Weight 0.8200 kg
barcode
Additional Information

Digital/Analog: Analog

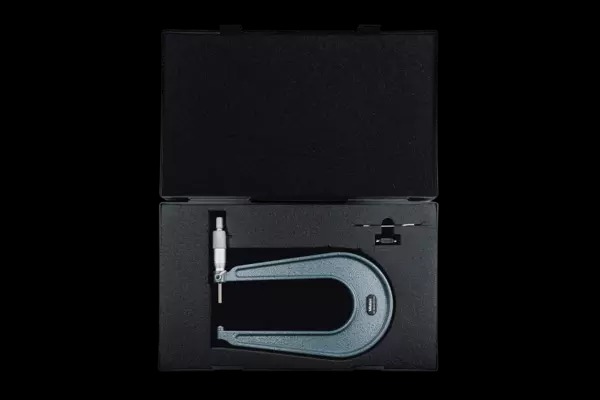

Delivered: Including box, spanner, setting standard
Inch-Metric: Metric
Range: 25 – 50 mm
Graduation: 0.01 mm
Max. Permissible Error J MPE: ±4 µm
Planned: 0.6 µm
Parallelism: 3 µm
Measuring face: Carbide-tipped, micro-lap finish
Anvil / Spindle: Type C, spherical/spherical
Measuring spindle: With spindle lock, throat depth ≤ 150 mm: ø6.35 mm, throat depth = 300 mm: ø8 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 3 – 8 N
Mass: 820 g
