Mitutoyo SJ210 SURFTEST 178-561-12E

Product Code: 178-561-12E

$4,837.00$4,397.27 Ex. GST

Product Code: 178-561-12E SKU 178-561-12E Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

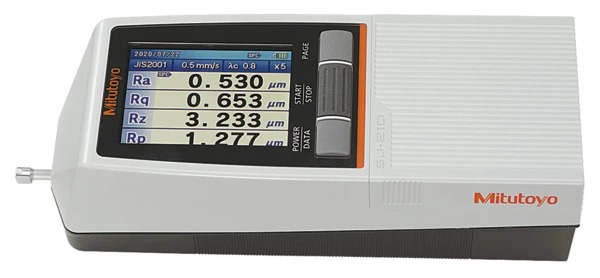

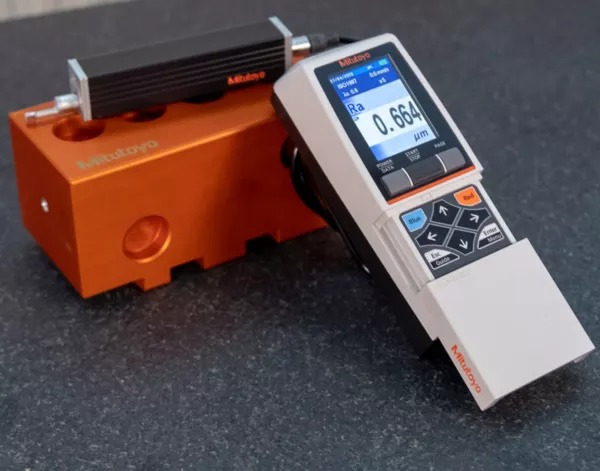

This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-210 offers you the following benefits:
Skid system gives you user friendly and intuitive menu navigation.
It works independently of mains power, allowing you to make on-site measurements.
The 6.0 cm [2.4“] colour graphic, back-lit LCD gives you excellent readability.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.

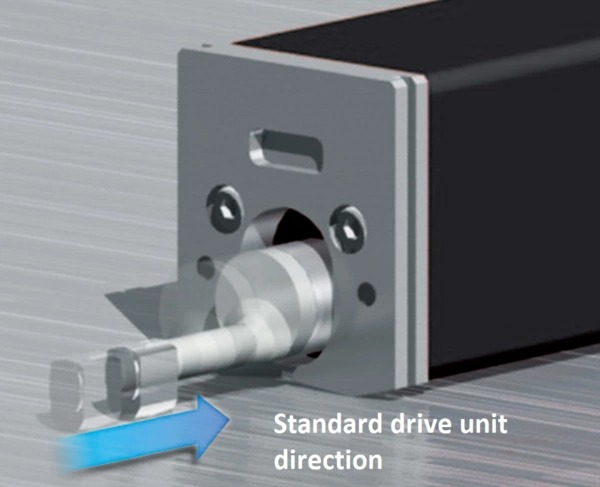

Different drivers expanding the range of applications.

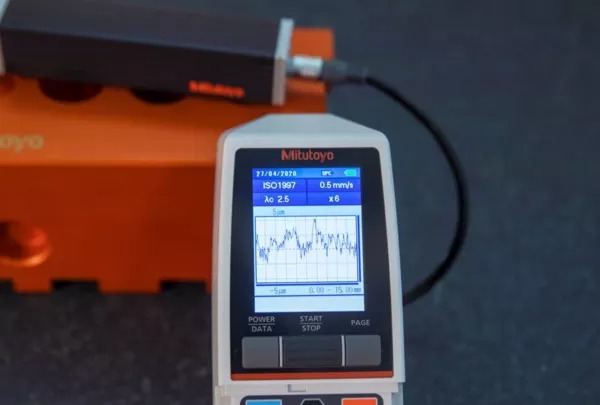

Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
Support of 21 languages.
Operation by keys on the front and under the sliding cover.

Additional information

Weight 0.5000 kg
barcode
Additional Information

Measuring range: 16 mm, [S-type] 4.8 mm
Traverse: 17.5 mm, 5.6 mm [S-type]
Measuring speed: 0.25 mm/s; 0.5 mm/s; 0.75 mm/s
Measuring method: Differential inductance
Range: 360 µm
Stylus: Diamond Tip
Skid radius: 40 mm
Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings
Digital filter: Gauss, 2CR75, PC75
Cut-off length: λc: 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm
λs: 2.5 µm; 8 µm
Tolerance: Coloured upper / lower limit
Mass: 500 g

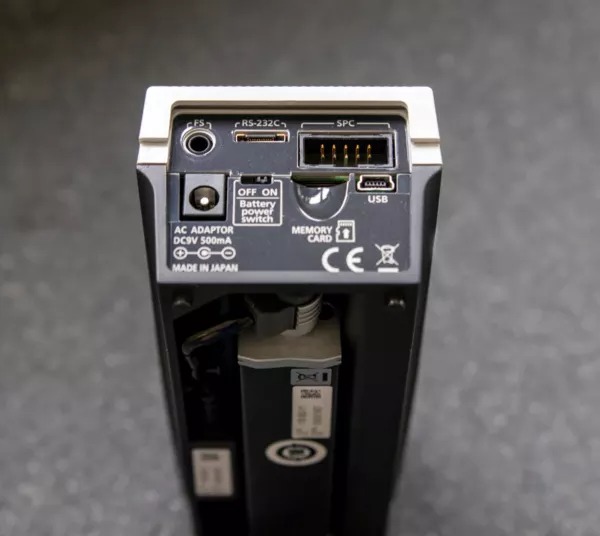

Power supply: AC adapter or rechargeable battery
