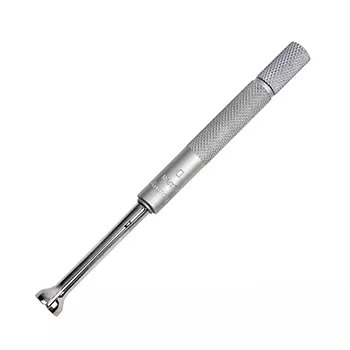

Mitutoyo Small Hole Gage 154-104

Description

154-104 Mitutoyo Small Hole Gage: 10-13mm

The Mitutoyo 154-104 Small Hole Gage has the following specifications:

Range: 10-13mm
Overall Length: 108mm
Probe Depth: 40mm
Clamp/Handle Diameter: 8.5mm
Features:

Available in Metric or Inch sets
Set includes four sizes of gages in a fitted case
Half ball with flat bottom design allows for diameter measurements at the bottom of bore holes, slots and grooves
Gaging surfaces are constructed of fully hardened steel for longer tool accuracy and lifespan
Satin chrome finish with knurled handle provides confident grip and resists rust
Supplied in fitted pouch
The Mitutoyo small hole gage features a hardened steel, precision machined split half ball on each gage for high-accuracy, two-point contact measurements throughout the entire column of small bores. The extra-long half ball small hole gage set allows for gaging both deep and shallow holes and slots. The split ball is constructed of hardened steel for accurate, repeatable two-point contact measurements. These hole gages are used with outside micrometers for measuring the inside diameter of bores.
