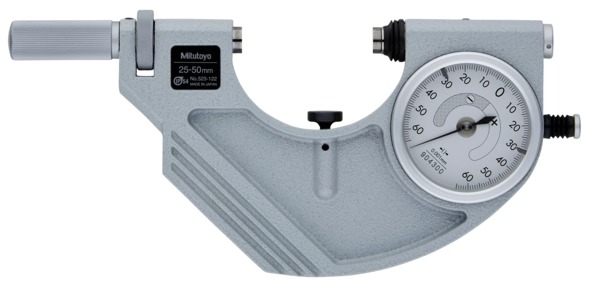

Mitutoyo Snap Meter 523-122

Description

The Mitutoyo 523-122 Dial Snap Meter has the following specifications:
Range: 25-50mm
Graduations: .001mm
Indicating Range: +/- .060mm

Features:
Dial indicator for GO/NO-GO tolerance inspection is highly accurate and easy to read
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Satin chrome finish on the thimble and sleeve resists rust and reduces glare

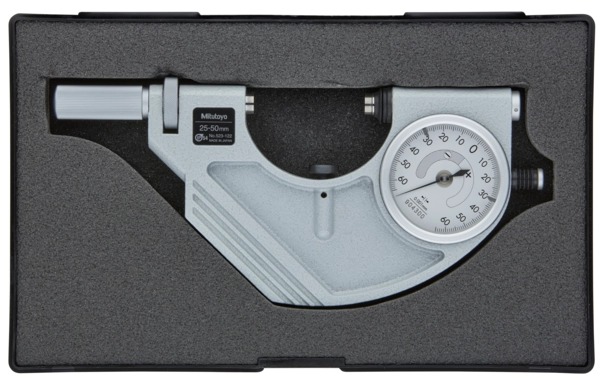

Supplied in fitted plastic case
IP54 protection resists debris, dust and water
The Mitutoyo 523-122 dial snap meter features a built-in dial indicator and retractable anvil for fast comparisons, GO/NG inspections for a multitude of applications. The snap micrometer can easily be set with a master such as a gage block to a nominal value.The button on the side can be pressed to open up the anvils slightly to make removing and putting parts between the anvils fast and easy.From there the operator and quickly and accurately measuring their parts.The Mitutoyo dial snap meter and dial indicator are manufactured in our factory in Japan with the same durability and precision as our micrometers. The spindle, anvil and frame are constructed of hardened steel to resist flexing so results are more accurate. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.The dial snap meters are a great inspection tool for measuring a high volume of parts that are all the same dimension.

Technical Data:
Technology: Mechanical
IP Rating: IP54
Measuring Force: 5-10N
Measuring Faces: Carbide tipped
