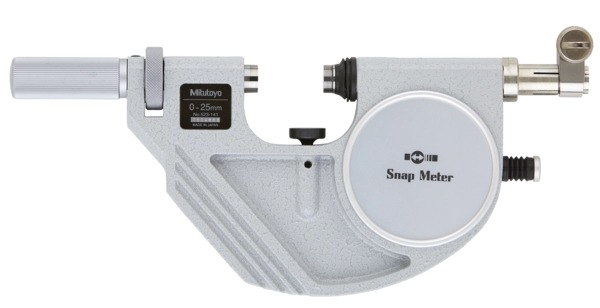

Mitutoyo Snap Meter B 523-141

Description

The Mitutoyo 523-141 Snap Meter has the following specifications:
Range: 0-25mm
Anvil Movement: 2mm
Stem Diameter: 8mm

Features:
Dial or digital indicator is optional and sold separately
Available in Metric or Inch models
Inch gage stem diameter is 3/8″
Metric gage stem diameter is 8mm
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Satin chrome finish on the thimble and sleeve resists rust and reduces glare

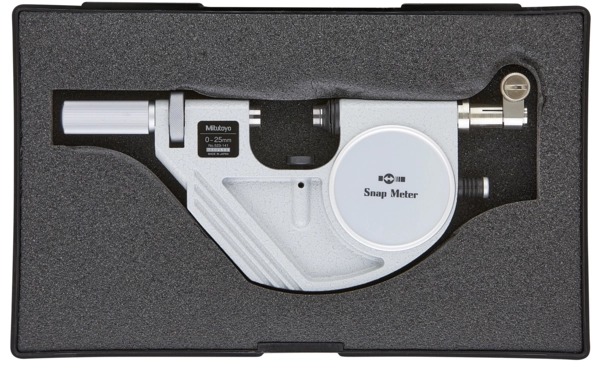

Supplied in fitted plastic case

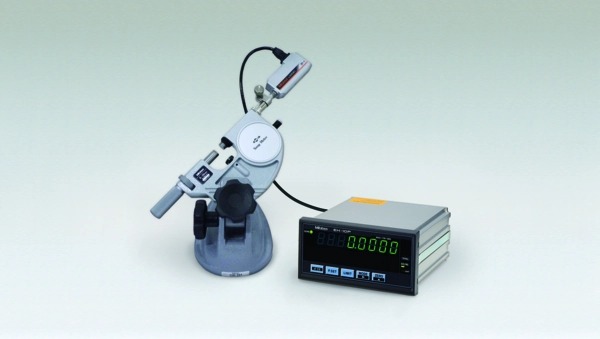

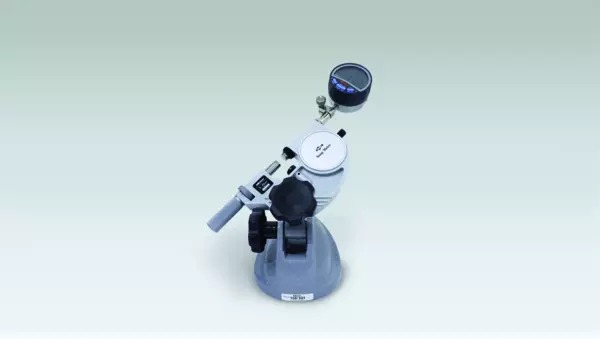

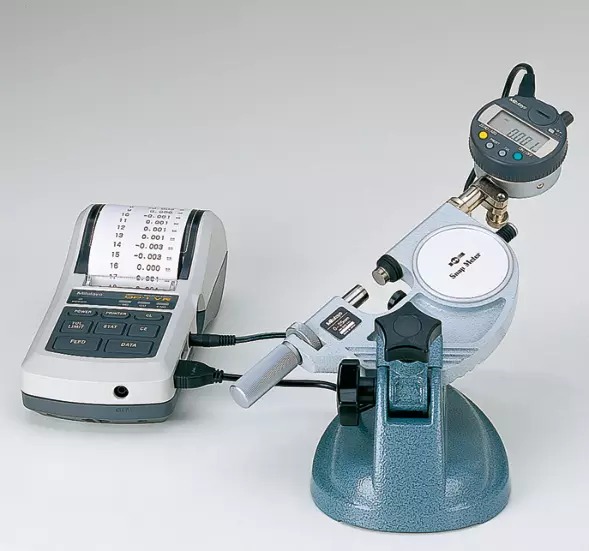

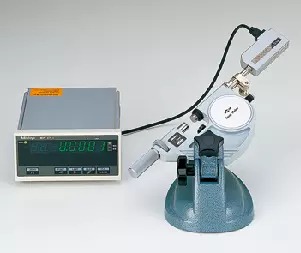

The Mitutoyo 523-141 snap meters accept a variety of optional indicators, linear gages and LVDTs for fast, accurate outside dimension verification according to a preset dimension or tolerance. The Mitutoyo snap meter gage utilizes a hardened steel spindle and anvil with carbide faces for precise, highly reliable outside dimension measurements. Many different types of dial or digital indicators attach to the spindle, allowing for GO/NG measurements on a wide variety of applications.Majority of the users will use an electronic indicator on the snap meter but a high accuracy probe or LVDT hooked up to a digital readout can increase the overall accuracy of the snap meter.hen an electronic indictor includes tolerancing lights in the features, the Mitutoyo Snap Meter can turn into an easy-to-use Go/NG gauge. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.

Technical Data:
Technology: Mechanical
Units: Metric
Anvil movement: 2mm
Measuring Force: 5-10N
Measuring Faces: Carbide tipped
Stem Diameter: 8mm
Flatness: 0.3µm
