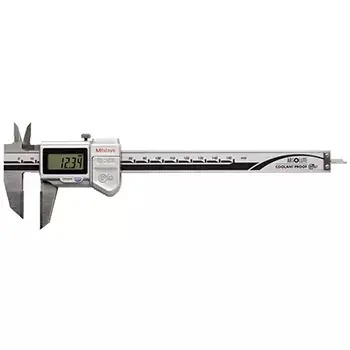

Mitutoyo SPECIAL PURPOSE DIGI CALIPER 573-677-20

Description

The Mitutoyo 573-677-20 ABSOLUTE Digimatic Scribing Caliper has the following specifications:

Range: 0-200mm
Resolution: 0.01mm
Accuracy: +/- 0.02mm
Mass: 196
Features:

Jaws are tipped with carbide for scribing, as well as, better accuracy and longer performance
With depth bar.
IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
With SPC data output. (Series 573)
Supplied in fitted plastic case.
Technical Data

ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Resolution: 0.01mm
Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882 Battery life: Approx. 3.5 years under normal use
Function

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
The Mitutoyo ABSOLUTE Scribing caliper features two sets of specially designed jaws for inside and outside dimensions. The jaws are tipped with carbide and are sharper than standard caliper jaws to enable fine scribing on workpieces when needed. The neck caliper is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making this caliper ideal for the shop floor. Step and depth measurements are possible with the depth bar.
