Mitutoyo Standard C 167-113

Product Code: 167-113

$75.23$68.39 Ex. GST

Product Code: 167-113 SKU 167-113 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

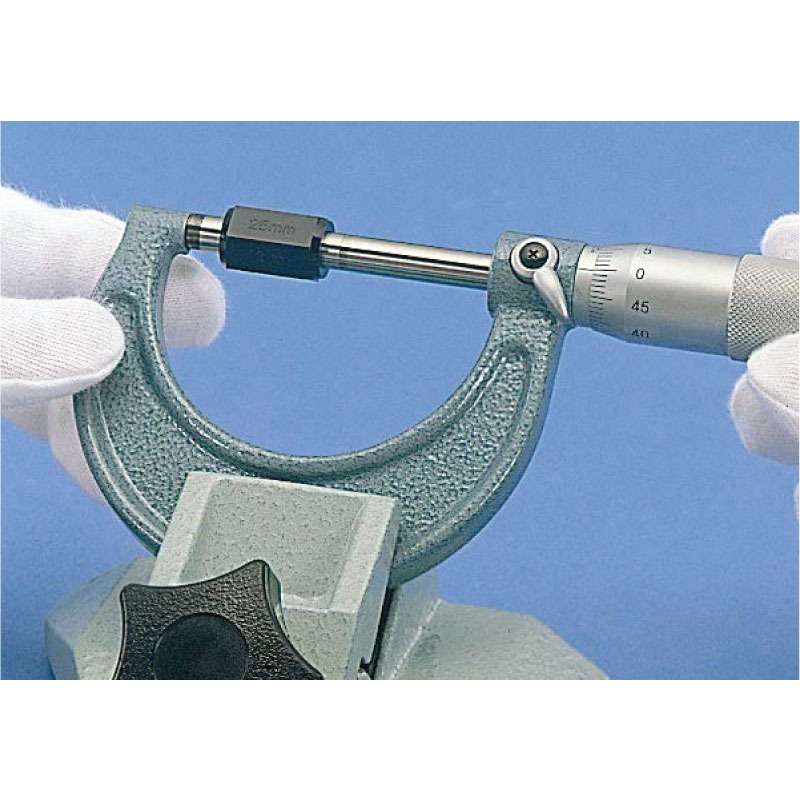

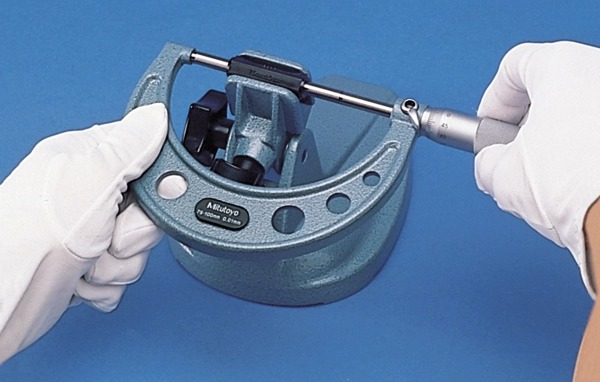

A Mitutoyo precision length standard for accurately setting a micrometer at the start or end of its measuring range. Can also be used for setting other types of continuous-scale measuring instruments at a certain point within the measuring range when wishing to use the narrow-range accuracy capabilities of that instrument

Additional information

Weight 0.0000 kg
Dimensions
barcode
Additional Information

Delivered: In a carton box
Inch-Metric: Metric
Length (L): 325 mm
Diameter (D): 7.9 mm
Accuracy: ±7.5 µm
Flatness: 0.3 µm
Parallelism: 2 µm
Measuring face: Micro-lap finish

Brand

Mitutoyo
