Mitutoyo Telescopic Gage A 155-132

Description

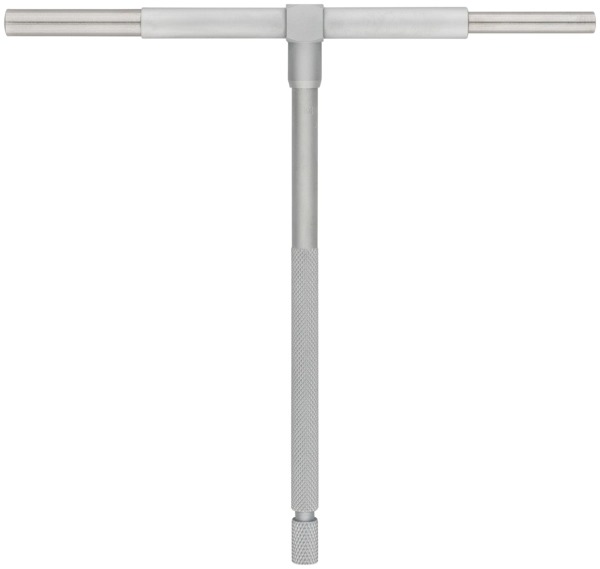

155-132 Mitutoyo Individual Telescoping Gage: 90-150mm

The Mitutoyo 155-132 Individual Telescoping Gage has the following specifications:

Range: 90-150mm
Overall Length (L): 150mm
Contact Diameters (A/B): 7.5mm and 6mm
Clamp/Handle Diameter (C): 8mm
Features:

Available in Metric or Inch sets as well as individual telescoping gages
Telescoping gage sets come with 4, 5 or 6 gages
Gaging surfaces are constructed of fully hardened steel for longer tool accuracy and lifespan
Satin chrome finish with knurled handle provides confident grip and resists rust
Spring-loaded plunger expands within the bore (or groove), allowing determination of the internal diameter (or groove width).
With a knurled clamp.
Telescoping gages must be measured with a micrometer to get the final bore diameter
Supplied in fitted pouch
The Mitutoyo 155-132 telescoping gage set features hardened steel plungers triggered by a balanced spring for smooth, reliable inside hole and opening measurements. The Mitutoyo telescoping gage allows measuring diameters of holes and openings quick, easy and accurate. Hardened steel plungers operate smoothly with a balanced spring, and each plunger has hardened contacts ground to a radius for true fit and measurements. These telescoping gages are used with outside micrometers for measuring inside hole and openings.
