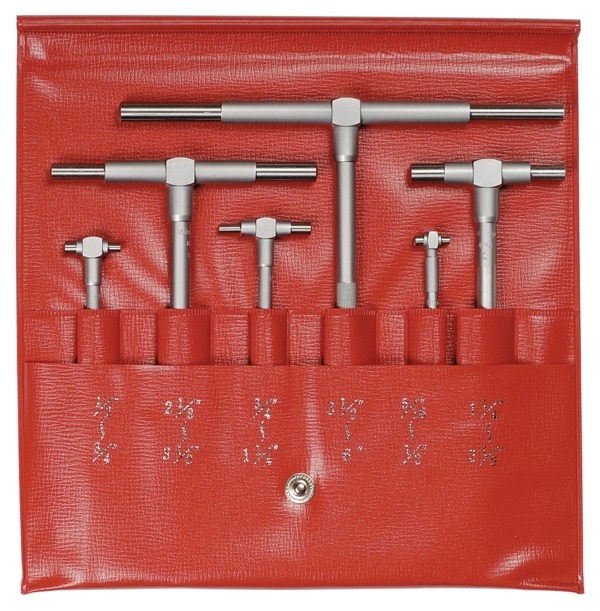

Mitutoyo Telescopic Gage Set A 155-903

Description

155-903 Mitutoyo 6-Piece Telescoping Gage Set: .313-6.00″

The Mitutoyo 155-903 6-Piece Telescoping Gage Set has the following specifications:

Range: .313-6.00″
6 Gage Set: .313-.500″, .500-.750″, .750-1.25″, 1.25-2.125″, 2.125-3.50″, 3.50-6.00″
Features:

Available in Metric or Inch sets as well as individual telescoping gages
Telescoping gage sets come with 4, 5 or 6 gages
Gaging surfaces are constructed of fully hardened steel for longer tool accuracy and lifespan
Satin chrome finish with knurled handle provides confident grip and resists rust
Spring-loaded plunger expands within the bore (or groove), allowing determination of the internal diameter (or groove width).
With a knurled clamp.
Telescoping gages must be measured with a micrometer to get the final bore diameter
Supplied in fitted pouch
The Mitutoyo 155-903 telescoping gage set features hardened steel plungers triggered by a balanced spring for smooth, reliable inside hole and opening measurements. The Mitutoyo telescoping gage allows measuring diameters of holes and openings quick, easy and accurate. Hardened steel plungers operate smoothly with a balanced spring, and each plunger has hardened contacts ground to a radius for true fit and measurements. These telescoping gages are used with outside micrometers for measuring inside hole and openings.
