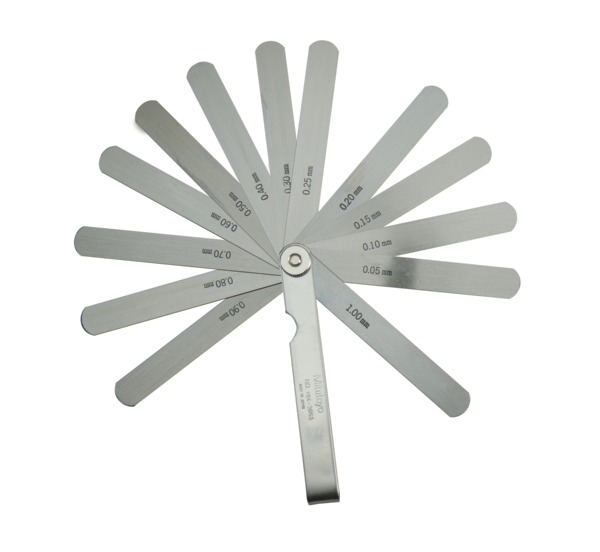

Mitutoyo Thickness Gage A 184-305S

Product Code: 184-305S

$65.75$59.77 Ex. GST

Product Code: 184-305S SKU 184-305S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Technical Data – Accuracy of Leaves Thickness – Nominal Thickness & Tolerance – Metric:

0.01mm to less than 0.06mm: +/- 0.003mm
0.06mm to less than 0.10mm: +/- 0.004mm
0.10mm to less than 0.35mm: +/- 0.005mm
0.35mm to less than 0.65mm: +/- 0.008mm
0.65mm to less than 3.0mm: +/- 0.01mm
Features:
Each leaf is marked with its thickness
Each leaf is detachable if necessary

Additional information

Weight 0.0820 kg
barcode
Additional Information

Inch-Metric: Metric
Range: 0.05-0.3 mm: by 0.05 mm, 0.4-1 mm: by 0.1 mm
Accuracy:0.03-0.15 mm: ±0.005 mm, 0.2-0.5 mm: ±0.012 mm, 0.55-1 mm: ±0.02 mm
Number of Leaves: 13
Leaf Length: 100 mm
Mass: 82 g

Brand

Mitutoyo
