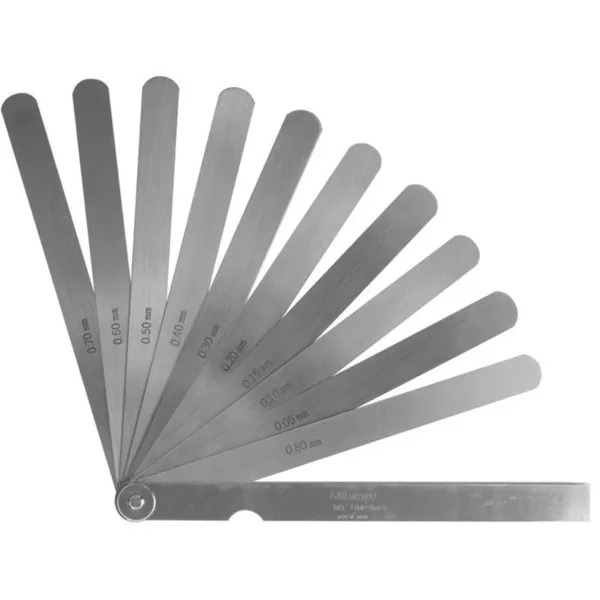

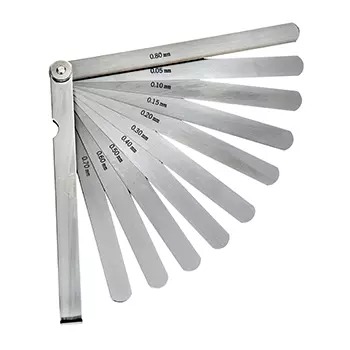

Mitutoyo Thickness Gage A 184-308S

Product Code: 184-308S

$57.71$52.46 Ex. GST

Product Code: 184-308S SKU 184-308S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The Mitutoyo 184-308S Thickness Gage has the following technical specifications:

Range: 0.05-0.8mm
Type of Blade: Straight 13mm width
Blade Length: 150mm
Composition of Leaves: 10 leaves: 0.05 – 0.2mm by 0.05mm, 0.3 – 0.8mm by 0.1mm
Features:
Each leaf is marked with its thickness
Each leaf is detachable if necessary

Additional information

Weight 0.0910 kg
barcode
Additional Information

Inch-Metric: Metric
Range: 0.05-0.2 mm: by 0.05 mm, 0.3-0.8 mm: by 0.1 mm
Accuracy: 0.03-0.15 mm: ±0.005 mm, 0.2-0.5 mm: ±0.012 mm, 0.55-1 mm: ±0.02 mm
Number of Leaves: 10
Leaf Length: 150 mm
Mass: 91 g

Brand

Mitutoyo
