Mitutoyo THREAD MICROMETER B 126-125

Product Code: 126-125

$394.98$359.07 Ex. GST

Product Code: 126-125 SKU 126-125 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

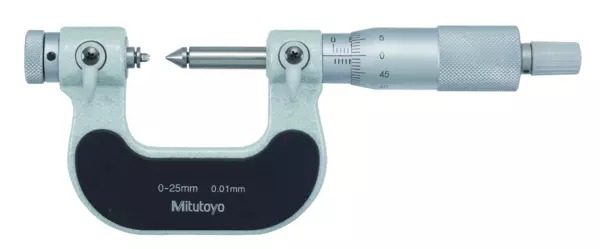

126-125 Mitutoyo Screw Thread Micrometer: 0-25mm

The Mitutoyo 126-125 Screw Thread Micrometer has the following specifications:

Range: 0-25mm
Graduation: 0.01mm
Accuracy: +/- .004mm
Features:

Interchangeable 60° or 55° V-anvil and conical spindle
Interchangeable anvils are made of high-grade steel,hardened and precision ground.
With Ratchet Stop for constant force and better repeatability among users
Standards are included for sizes over 1″/25mm
Supplied in fitted plastic case.

Additional information

Weight 0.2400 kg
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, spanner, setting standard
Inch-Metric: Metric
Range: 0 – 25 mm
Graduation: 0.01 mm
Spindle Feed Error: 3 µm
Measuring Face: Interchangeable anvil/spindle inserts (optional)
Measuring Spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force: 5 – 10 N
Mass: 240 g
