Mitutoyo THREAD MICROMETER B 126-126

Product Code: 126-126

$492.65$447.86 Ex. GST

Product Code: 126-126 SKU 126-126 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

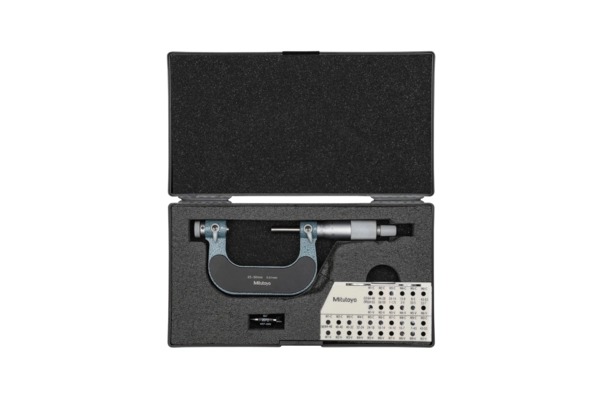

126-126 Mitutoyo Screw Thread Micrometer: 25-50mm

The Mitutoyo 126-126 Screw Thread Micrometer has the following specifications:

Range: 25-50mm
Graduation: 0.01mm
Accuracy: +/- .004mm
Features:

Interchangeable 60° or 55° V-anvil and conical spindle
Interchangeable anvils are made of high-grade steel,hardened and precision ground.
With Ratchet Stop for constant force and better repeatability among users
Standards are included for sizes over 1″/25mm
Supplied in fitted plastic case.

Additional information

Weight 0.2900 kg
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, spanner, setting standard 60°
Inch-Metric: Metric
Range: 25 – 50 mm
Graduation: 0.01 mm
Spindle Feed Error: 3 µm
Measuring Face: Interchangeable anvil/spindle inserts (optional)
Measuring Spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force: 5 – 10 N
Mass: 290 g

Brand

Mitutoyo
