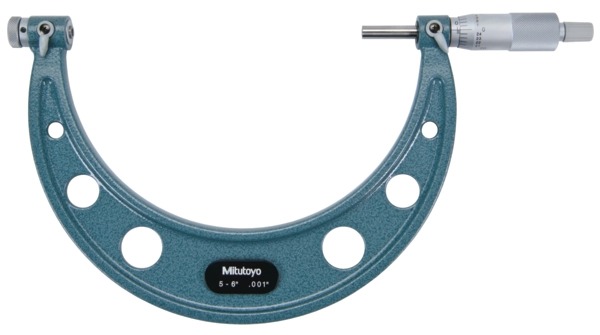

Mitutoyo Thread Micrometer B 126-142

Description

126-142 Mitutoyo Screw Thread Micrometer: 5-6″

The Mitutoyo 126-142 Screw Thread Micrometer has the following specifications:

Range: 5-6″
Graduation: .001″
Accuracy: +/- .00025″
Thread Anvils are not included and need to be purchased along with the micrometer
Features:

Available in Metric and Inch models
Optional interchangeable 60 degree and 55 degree V-Anvil and conical spindle inserts are precision ground hardened, high-grade steel
Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Includes a standard bar except for 0-25mm and 0-1″ models
Supplied in fitted plastic case
The Mitutoyo 126-142 screw thread micrometer uses interchangeable anvils and spindle to perform accurate measurement of different types of screw thread pitch diameters faster and easier. The Mitutoyo screw thread micrometer uses optional V-Anvil and conical spindle inserts interchangeably to precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Technical Data:

Technology: Mechanical
SPC Output: No
Ratchet/Thimble: Ratchet Stop
