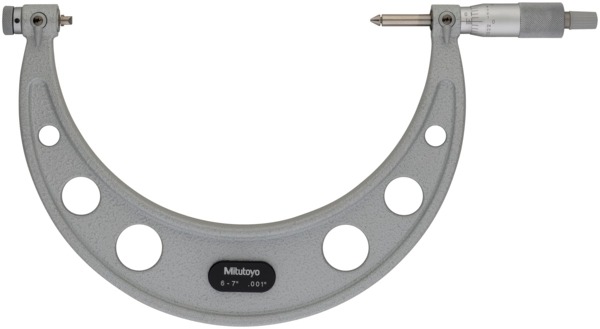

Mitutoyo Thread Micrometer B 126-143

Product Code: 126-143

$943.37$857.61 Ex. GST

Product Code: 126-143 SKU 126-143 Categories MEASUREMENT, Thread Micrometer B

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.

Additional information

Weight	0.7300 kg
barcode
Additional Information	Digital/Analog: Analog Delivered: Including box, spanner, setting standard 60° (inch) Inch-Metric: Inch Range: 6 – 7" Graduation: 0.001" Spindle Feed Error: 0.00015 inch Measuring Face: Interchangeable anvil/spindle inserts (optional) Measuring Spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm Scale: Thimble and sleeve satin chrome finish, ø18 mm Measuring Force: 5 – 10 N Mass: 730 g

Mitutoyo Thread Micrometer B 126-143

Need Technical Advice?

Description

Additional information

Brand

Mitutoyo
