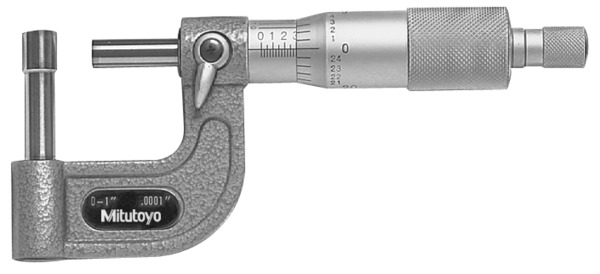

Mitutoyo Tube Mic. 0-1″ Type D 115-314

Description

The Mitutoyo 115-314 Tube Micrometer has the following specifications:

Range: 0-1″
Graduations: .0.0001″ (obtained with vernier)
Accuracy: +/- .00015″
Anvil: Type D 8.0mm Cylindrical
Mass(g): 180g

Features:
Available with pin, spherical and cylindrical anvils
Available in Metric and Inch models
Measurements are displayed on the micrometer’s frame with a mechanical analog digit counter
Model with a perpendicular cylindrical anvil are available
Designed to measure the wall thickness of various tubing
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Size over 0-1″ or 0-25mm are supplied with a standard
Frame has a non-slip finish for better grip in shop environments
Supplied in fitted plastic case
The Mitutoyo 115-314 tube micrometer measures the thickness of tube walls within +/- 0.00015″/.003mm of accuracy and displays readings on an analog digit counter. Available in inch or metric units. The Mitutoyo tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Technical Data:
Technology: Mechanical
SPC Output: No
Ratchet/Thimble: Rachet Stop

Types of Tube Micrometer Anvils:
Type A: 1.8mm Pin
Type B: 3.5mm Spherical
Type C: 4.7mm Spherical
Type D: 8.0mm Cylindrical
