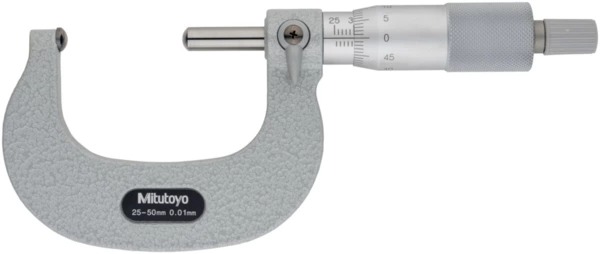

Mitutoyo Tube Micrometer B 115-216

Description

The Mitutoyo 115-216 Spherical Face Micrometer has the following specifications:

Range: 25-50mm
Graduations: 0.01mm
Accuracy: +/- .003mm
Mass(g): 240
Type: Spherical anvil and spherical spindle
Remarks(g): D: 11mm

Features:
Available in Metric and Inch models
Available with spherical anvil and flat spindle or with spherical anvil and spherical spindle
Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
Spherical measuring faces are 0.59” in diameter and carbide-tipped for durability
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-1″ and 0-25mm models

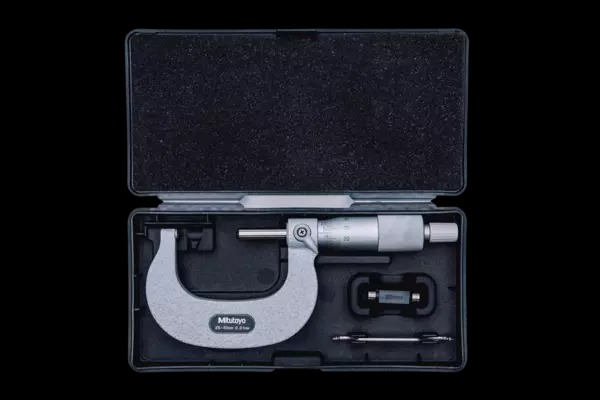

Supplied in fitted plastic case

Technical Data:
Technology: Mechanical
SPC Output: No
Ratchet/Thimble: Rachet Stop
The Mitutoyo 115-216 spherical face micrometer measures the thickness of curved parts within +/- 0.00015″ for accuracy. Available in inch or metric units. The Mitutoyo spherical face micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle, depending on the application. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.
