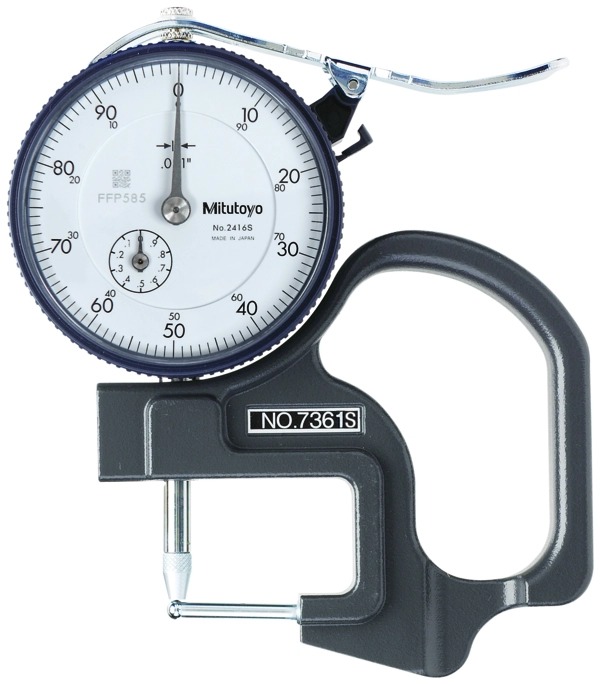

Mitutoyo TUBE THICKNESS GAUGE 7361S

Product Code: 7361S

$274.82$249.84 Ex. GST

Product Code: 7361S SKU 7361S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Quick and efficient means of inspection with convenient grip handle, thumb trigger and spring-loaded spindle. Measuring faces of high-grade tool steel, hardened, ground and lapped for accuracy.

Features:
Spindle of hardened stainless steel
Direct reading 0-100 (with revolutions counter)
Micro-fine black graduations for .001″ or .01mm minimum reading
Range/Resolution/Accuracy: 0 to 0.4″/0.001″/±0.001″

Additional information

Weight 0.2000 kg
barcode
Additional Information

Inch-Metric: Inch
Functions: Tube thicknesses – Minimum inside diameter 3.5 mm
Delivered: In a box with spindle lifting lever 21AZB149
Graduation: 0.001"
Parallelism: 5 µm
Max. Measuring Depth: 0.8"
Mass: 200 g
Contact Point: Thread # 4-48UNF

Brand

Mitutoyo
