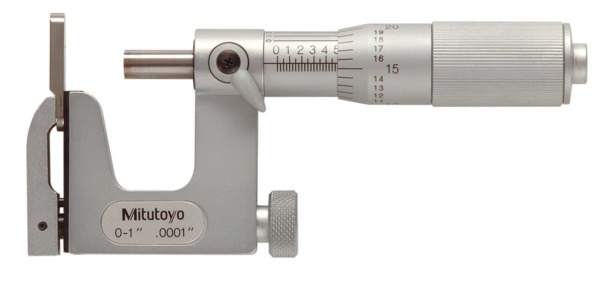

Mitutoyo Uni Micrometer B 117-107

Description

The Mitutoyo 117-107 Interchangeable Anvil “Uni-Mike” Micrometer has the following specifications:

Range: 0-1″
Graduations: 0.0001″ (obtained with vernier)
Accuracy: +/- .0002″
Mass(g): 255g
Friction Thimble

Features:
Available in Metric and Inch models
Metric models include a ratchet stop thimble with a constant measuring force
Inch models include a friction thimble with a constant measuring force
Supplied with a flat anvil and rod anvil
Carbide tips resist wear on the measuring faces for accurate measurements for an extended period of time
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Knurled friction thimbles provides quick adjustments even when wearing gloves
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Certificate of Inspection is provided
Supplied in fitted plastic case

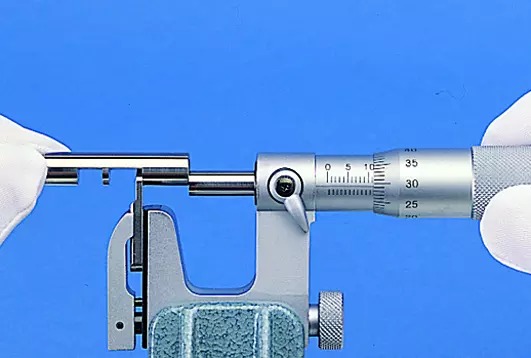

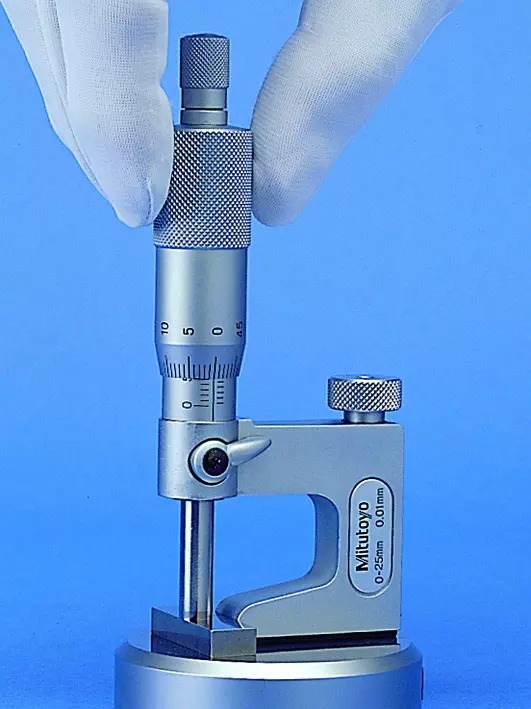

The Mitutoyo 117-107 Uni-Mike provides great versatility to take highly accurate measurements on many different types of workpieces. The Mitutoyo Uni-Mike micrometer features a clamp on the anvil side of the micrometer’s frame to allow the use of several different types of anvils. Depending on the type of anvil used, the Uni-Mike is proficient at measuring the thickness of tubes, rivet head heights, and shoulder-edge distances. A special disc anvil is available which allows the Uni-Mike to function similar to an indicator on a stand for measuring the height or thickness of workpieces.
