Mitutoyo Universal Magnetic Stand 7033-10

Product Code: 7033-10

$821.10$746.45 Ex. GST

Product Code: 7033-10 SKU 7033-10 Categories MEASUREMENT, Universal Magnetic Stand

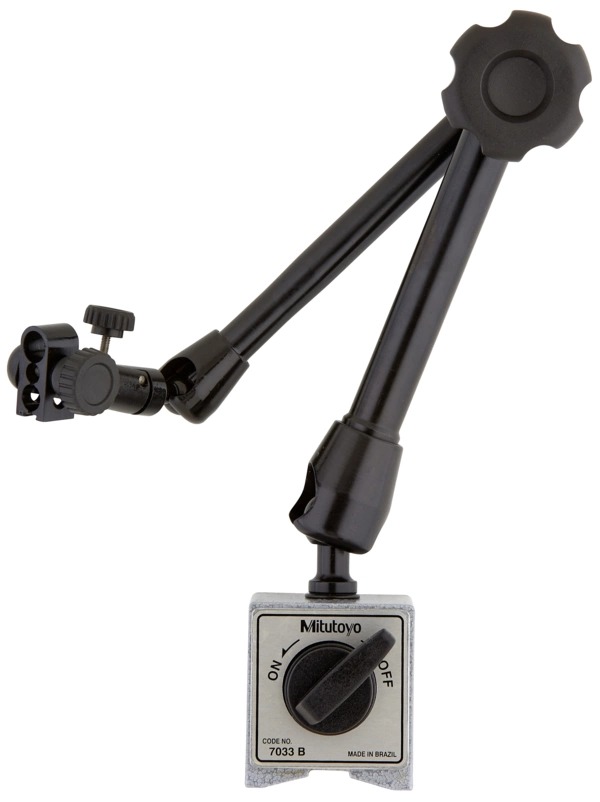

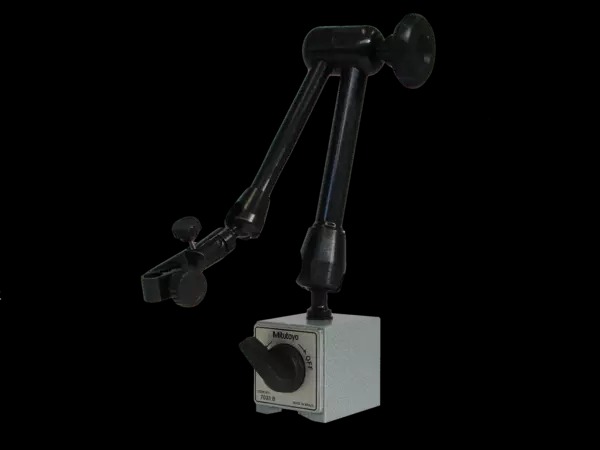

Mitutoyo Universal Magnetic Stand 7033-10

Mitutoyo Universal Magnetic Stand 7033-10 - Image 2

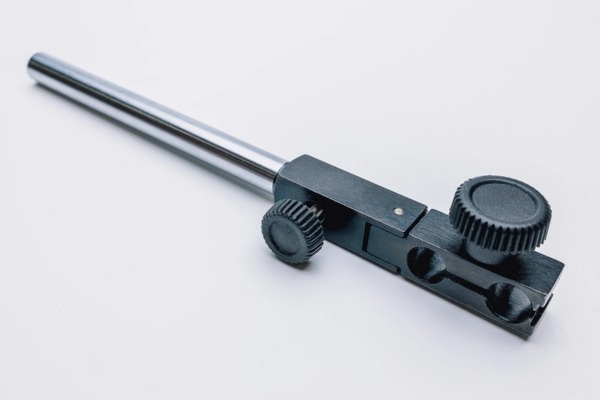

Mitutoyo Universal Magnetic Stand 7033-10 - Image 3

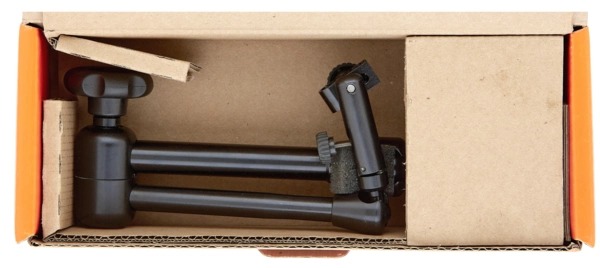

Mitutoyo Universal Magnetic Stand 7033-10 - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This jointed magnetic stand offers you the following benefits:
It comes with a mechanical locking system and allows fine adjustment.
You can also fix a dial indicator in any position by mechanically clamping the articulated arm.

Additional information

Weight	1.7500 kg
barcode
Additional Information	Clamping Device: magnetic Clamping Force (Vertical): 600 N Base Size (LxWxH): 59 x 50 x 55 mm Total Height: 425 mm Fine Adjustment °: ±4 Fine Adjustment: with fine feed wheel ±4° Stem Hole Ø: 6 mm, 8 mm, 9.53 mm, dovetail Working Radius: 346 mm Thread Arm/Base: M8 x 1.25 Delivered: In a carton box Mass: 1.75 kg

Mitutoyo Universal Magnetic Stand 7033-10

Need Technical Advice?

Description

Additional information

Brand

Mitutoyo
