$607.40$552.18 Ex. GST

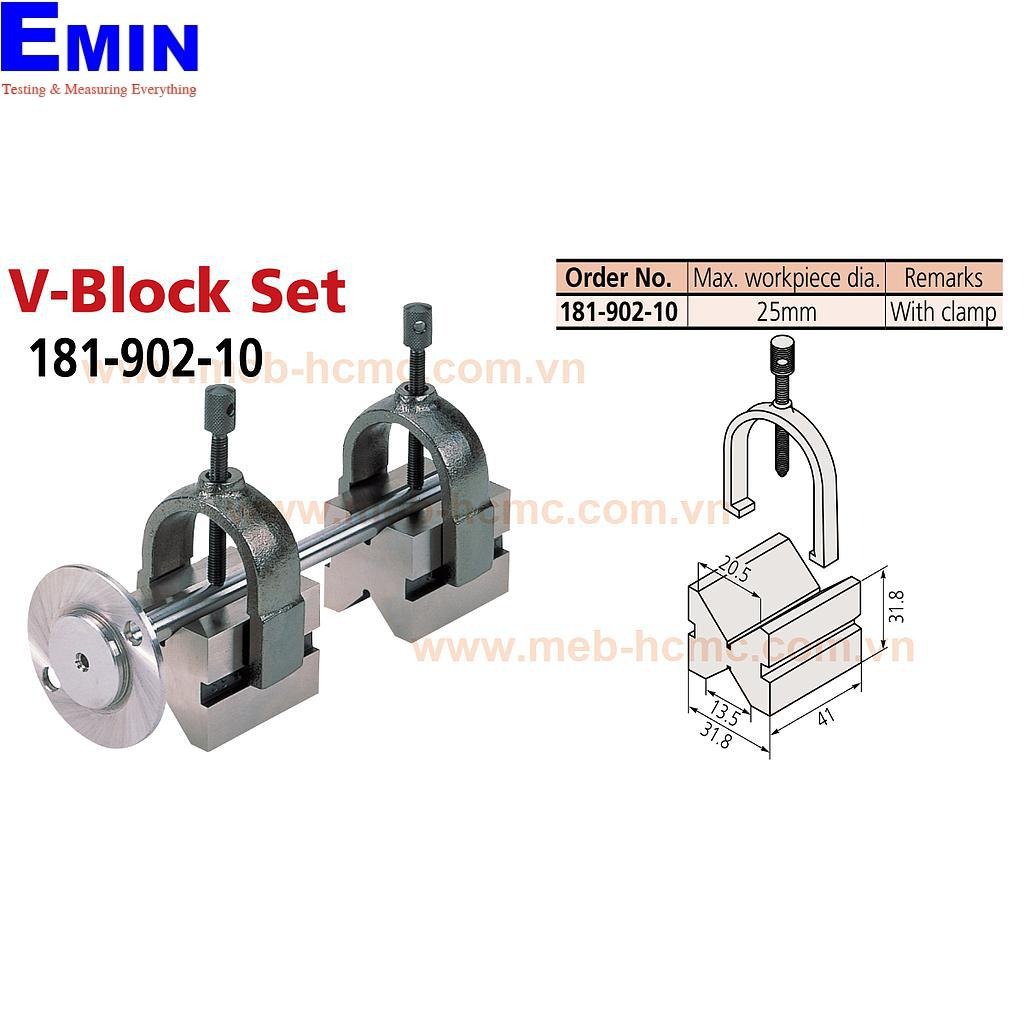

With the Mitutoyo 181-902-10 Hardened Steel V-Blocks, you can easily check cylindrical precision machined parts. The V-blocks are outfitted with V-angle 90° clamping brackets and ground and lapped contact faces.
Features:
Equipped with V-angle 90° clamping brackets to hold your parts
Ground and lapped contact faces
0.24″ (6μm) parallelism between the V-groove and all side surfaces
0.35″ (9μm) perpendicularity between the V-groove and the back surface
Offers a hardness of 58 to 63 HRC
0.24″ (6μm) symmetry of the V-grooves
0.47″ (12μm) difference of the height of the pair
V-groove 1 boasts a maximum receiver diameter of 0.98″ (25 mm), while V-groove 2 features a maximum receiver diameter of 0.63″ (16 mm)
| Weight | 0.6500 kg |
|---|---|
| Dimensions | Length 4.1cm x Width 3.18cm x Depth 3.18cm |
| barcode | |
| Additional Information | Product Weight: 1.43 lbs (0.65 kg) |
