$140.43$127.66 Ex. GST
The Mitutoyo 530-114 Vernier Caliper has the following specifications:
Range: 0-200mm/0-8″
Accuracy: +/- 0.05mm
Graduation Lower Scale: 0.05mm
Graduation Upper Scale: 1/128″
Remarks: —
Features:
The small vernier face angle (14?) provides easy reading.
Dual reading scales on vernier. (metric/inch and inch models only)
Lock screw for holding the sliding jaw position.
Carbide-tipped jaw type calipers are also available.

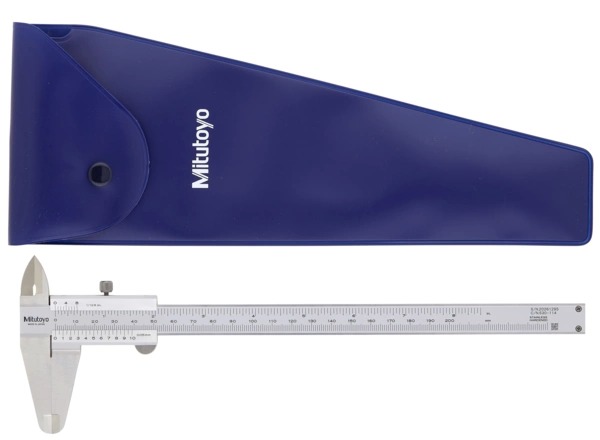

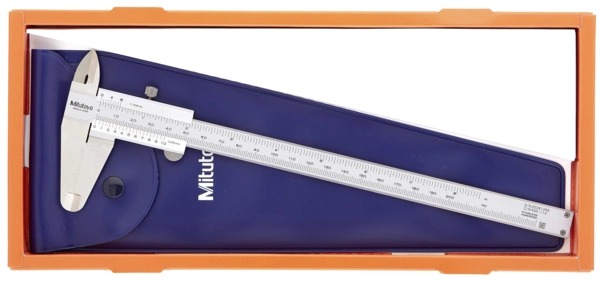

Supplied with vinyl holster in fitted carton. Except 600mm / 24″ models are carton only. 1000mm / 40″ supplied in wooden case.
Technical Data
Graduation: 0.05mm, 0.05mm (1/128″) or .001″ (1/128″)
High accuracy type: 0.02mm or 0.02mm (.001″)
| Weight | 0.1800 kg |
|---|---|
| Dimensions | |
| barcode | |
| Additional Information | With upper locking screw: Yes |
